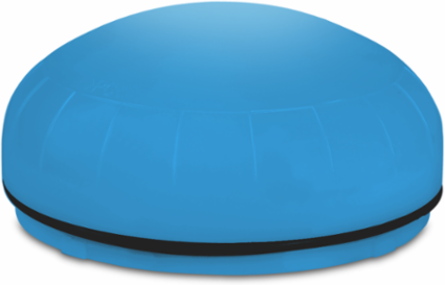

Federal Signal SLM300B StreamLine Modular LED Light, Low Profile, UL and cUL, Opaque Lens, Blue, Base Sold Separately
- MPN: SLM300B
- UPC: 782979232186
- PPN: FDS-SLM300B
- UNSPSC: 39111706
CAD
$245.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Models SLM300 and SLM350 offer a multifunctional LED beacon with high optical performance. Developed with a multiple-input technology, these models offer three separate flash patterns (steady, flashing, and strobe), controllable via wiring selection. The steady light option offers a consistent light source. The flashing mode consists of a single flash, while the strobe effect is a 3x, 5x, or random flash. Two integrated buttons allow the user to select a different light effect per channel and adjust the light output brightness (33%, 66%, 100%) for a truly custom application.Model SLM300 includes an opaque lens for signaling in close proximities. Model SLM350 includes a fresnel lens for long distance signaling. The body material is a self-extinguishing polycarbonate material with high-impact and UV resistance suitable for outdoor applications.
Features
- Compatible with 12-24 Vac/dc or 120-240 Vac*
- PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
- Three flash patterns: steady, flashing, and strobe
- Three light intensity levels: 33%, 66% or 100%
- 100,000-hour LED
- Five LED lamp/lens colors: Amber, Blue, Clear, Green and Red
- Seven mounting base options
- Type 4X, IP66 enclosure
- IP69K** compliant
- CE and UKCA compliant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.24 lbs
- Certification Listing
- CE, UL, cUL
- Flash Pattern Type
- Steady/Flashing/Simulated Strobe
- Availability
- In Stock - Ships in 2 Bus Days
- Lens Style
- Proximity
- Operating Temp.
- -40˚ to +131˚F (-40˚ to +55˚C)
- Visual Signals Lens Color
- Blue
- Environmental Rating
- Ordinary Location
- Lead Time
- In Stock - Ships in 2 Bus Days
Height1.67 in
Body ColorGray, Red
Diameter3.9 in (99.06 mm)
Flashes Per MinuteFlash Mode 120 (+/-10), Strobe Mode 85 (+/-10)
Lens ColorBlue
Mount Type2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
Operating Voltage12-24 Vac/dc, 120-240 Vac
Visual Signals Lens StyleProximity
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
