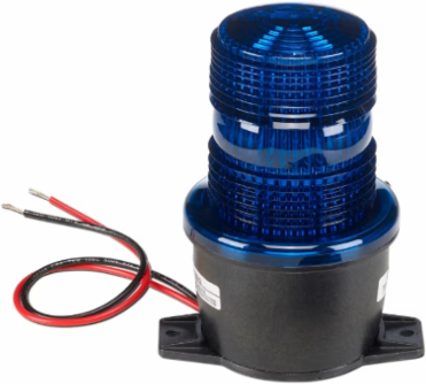

Federal Signal LP3T-012-048B StreamLine Strobe Light, Low Profile, UL and cUL, 12-48VDC, T-Mount, Blue
- MPN: LP3T-012-048B
- UPC: 782979204145
- PPN: FDS-LP3T-012-048B
- UNSPSC: 39111706
CAD
$253.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model LP3 is offered in five mounting configurations. The LP3S features a three-hole surface mount — ideal for control panels and other flat or flush surfaces. The LP3E features a standard A-19 medium Edison screw-in base. The LP3M features a 1/2-inch NPT male pipe mount and 18-inch wire leads. LP3P features an integrated 1/2-inch NPT pipe mount. The "T-mount" LP3T has a popular two-hole design for wall or flush mounting.Models LP3M, LP3S, and LP3T include a surface gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3M, LP3S, and LP3T when installed flush with a panel. All LP3 units feature a threaded screw-on lens to allow for tool-free wiring and strobe tube replacement.Like all StreamLine® products, the LP3 is designed with OEM applications in mind.
Features
- Available in 12-48 Vdc, 120 Vac and 240 Vac; LP3E only available in 120 Vac
- Five mounting options: Edison (E), 1/2-inch NPT male pipe (M), Surface (S), T-Mount (T), integrated 1/2-inch NPT pipe (P)
- Five lens colors: Amber, Blue, Clear, Green and Red
- Screw-on lens provides easy access
- Conformal coated PCBA
- Type 4X, IP66 enclosure
- Models LP3M, LP3P and LP3S are IP69K compliant (excludes LP3E and LP3T)
- PLC and triac compatible
- CSA Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.46 lbs
- Candela Power Peak
- 175000
- Diameter
- 3.13 in (79.502 mm)
- Availability
- Ships in 10 Business Days
- Mount Type
- T-Mount
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Mount Type
- T-Mount
- Environmental Rating
- Ordinary Location
- Lead Time
- Ships in 10 Business Days
Height5.02 in
Body ColorBlack
Certification ListingCSA, UL, cUL
Flashes Per Minute80
Lens ColorBlue
Operating Current Amps0.44-0.10
Visual Signals Lens ColorBlue
Visual Signals Operating Voltage12-48VDC
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
