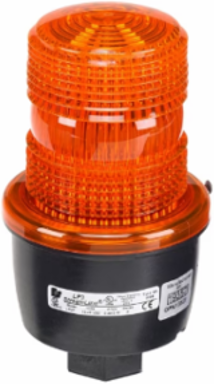

Federal Signal LP3P-120A StreamLine Strobe Light, Low Profile, UL and cUL, 120VAC, NPT Pipe Mount, Amber
- MPN: LP3P-120A
- UPC: 782979203322
- PPN: FDS-LP3P-120A
- UNSPSC: 39111706
CAD
$253.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Model LP3 is offered in five mounting configurations. The LP3S features a three-hole surface mount — ideal for control panels and other flat or flush surfaces. The LP3E features a standard A-19 medium Edison screw-in base. The LP3M features a 1/2" NPT male pipe mount and 18" wire leads. LP3P features an integrated 1/2-inch NPT pipe mount. The "T-mount" LP3T has a popular 2-hole design for wall or flush mounting.Models LP3M, LP3S and LP3T include a surface gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3M, LP3S and LP3T when installed flush with a panel. All LP3 units feature a threaded screwon lens to allow for tool free wiring and strobe tube replacement.Like all StreamLine® products, the LP3 is designed with OEM applications in mind.
Features
- Available in 12-48VDC, 120VAC and 240VAC; LP3E is 120VAC only
- Five mounting options: Edison (E), 1/2-inch NPT male pipe (M), Surface (S), T-Mount (T), integrated 1/2-inch NPT pipe (P)
- Five lens colors: Amber, Blue, Clear, Green and Red
- Screw-on lens provides easy access
- Conformal coated PCBA
- Type 4X, IP66 enclosure
- Models LP3M, LP3P and LP3S are IP69K compliant (excludes LP3E and LP3T)
- PLC and triac compatible
- CSA Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- CSA, UL, cUL
- Diameter (mm)
- 79.502
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- 1/2-Inch NPT Pipe
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Mount Type
- 1/2-Inch NPT Pipe
- Depth
- 5.82 in, 14.7828 cm
- Diameter
- 3.13 in, 7.9502 cm
Weight0.46 lbs
Candela Power Peak175000
Diameter (in)3.13
Flashes Per Minute80
Lens ColorAmber
Operating Current Amps0.1
Visual Signals Lens ColorAmber
Visual Signals Operating Voltage120VAC
Height5.82 in, 14.7828 cm
