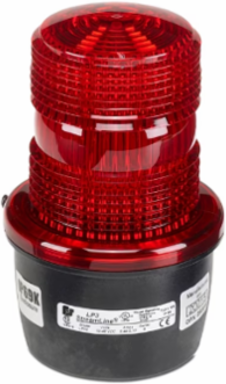

Federal Signal LP3S-120R StreamLine Strobe Light, Low Profile, UL and cUL, 120VAC, Surface Mount, Red
- MPN: LP3S-120R
- UPC: 782979204077
- PPN: FDS-LP3S-120R
- UNSPSC: 39111706
CAD
$253.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model LP3 is offered in five mounting configurations. The LP3S features a three-hole surface mount — ideal for control panels and other flat or flush surfaces. The LP3E features a standard A-19 medium Edison screw-in base. The LP3M features a 1/2-inch NPT male pipe mount and 18-inch wire leads. LP3P features an integrated 1/2-inch NPT pipe mount. The "T-mount" LP3T has a popular two-hole design for wall or flush mounting.Models LP3M, LP3S, and LP3T include a surface gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3M, LP3S, and LP3T when installed flush with a panel. All LP3 units feature a threaded screw-on lens to allow for tool-free wiring and strobe tube replacement.Like all StreamLine® products, the LP3 is designed with OEM applications in mind.
Features
- Available in 12-48 Vdc, 120 Vac and 240 Vac; LP3E only available in 120 Vac
- Five mounting options: Edison (E), 1/2-inch NPT male pipe (M), Surface (S), T-Mount (T), integrated 1/2-inch NPT pipe (P)
- Five lens colors: Amber, Blue, Clear, Green and Red
- Screw-on lens provides easy access
- Conformal coated PCBA
- Type 4X, IP66 enclosure
- Models LP3M, LP3P and LP3S are IP69K compliant (excludes LP3E and LP3T)
- PLC and triac compatible
- CSA Certified
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Weight
- 0.46 lbs
- Candela Power Peak
- 175000
- Diameter
- 3.13 in (79.502 mm)
- Availability
- In Stock - Ships in 2 Bus Days
- Mount Type
- Surface
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Mount Type
- Surface
- Environmental Rating
- Ordinary Location
- Lead Time
- In Stock - Ships in 2 Bus Days
Height5.02 in
Body ColorBlack
Certification ListingCSA, UL, cUL
Flashes Per Minute80
Lens ColorRed
Operating Current Amps0.1
Visual Signals Lens ColorRed
Visual Signals Operating Voltage120VAC
Enclosure RatingIP66, IP69K, Type 4X
Product Life Cycle StatusCompleted
