Federal Signal LP1-024C StreamLine Strobe Light, Low Profile, UL and cUL, 24VDC, Blue
Federal Signal LP1-024C StreamLine Strobe Light, Low Profile, UL and cUL, 24VDC, Blue
- MPN: LP1-024C
- UPC: 782979201496
- PPN: FDS-LP1-024C
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$290.16/ EA
Description

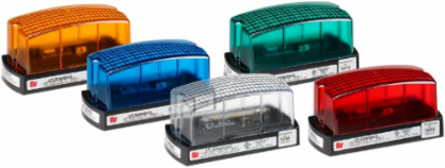

Model LP1 low profile strobe light is a rectangular Type 4X strobe light that is available in five colors: Amber, Blue, Clear, Green and Red. The LP1 is designed to be flush mounted to control panels or other flat surfaces. Mounting is accomplished with two supplied 1-1/4" 8/32 slotted hex bolts. A neoproene gasket is supplied to create a water-tight and dust-tight seal. The gasket mounts between the base of the light and the mounting surface.The LP1 is especially suited for use on control panels, machines, above entry ways, on walls, and along assembly lines. The 12 and 24VDC units are suitable in battery backup systems and vehicular applications such as forklifts and moving guided vehicles.
Features
- Available in 12VDC, 24VDC, and 120VAC
- Surface mount
- Five lens colors: Amber, Blue, Clear, Green and Red
- Low profile – Height 2.61" by Width 2.33" by Length 5.05"
- Conformal coated PCB
- Type 4X enclosure
- UL and cUL Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- UL, cUL
- Availability
- Ships in 10 business days
- Mount Type
- Surface
- Operating Temp.
- -31˚ to +150˚F (-35˚ to +66˚C)
- Visual Signals Lens Color
- Clear
- Depth
- 2.61 in, 6.6294 cm
- Width
- 2.33 in, 5.9182 cm
Weight0.23 lbs
Candela Power Peak108000
Flashes Per Minute80
Lens ColorClear
Operating Current Amps0.08
Operating Voltage24 Vdc
Visual Signals Operating Voltage24VDC
Height2.61 in, 6.6294 cm
Length5.05 in, 12.827 cm
