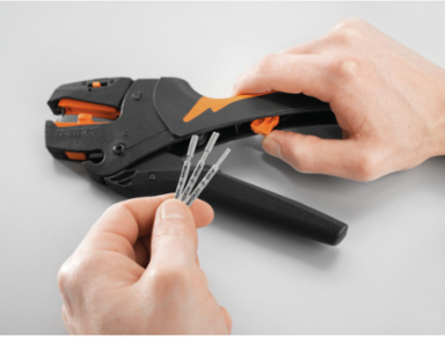

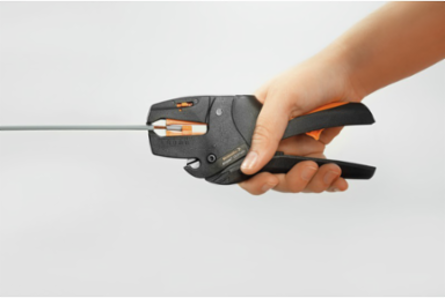

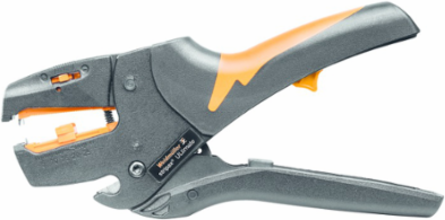

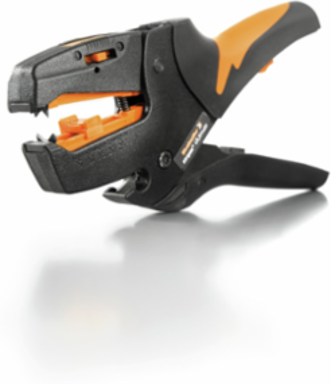

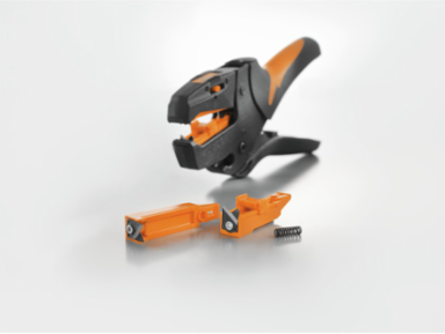

Weidmuller 1468880000 STRIPAX ULTIMATE
- MPN: 1468880000
- PPN: WDM-1468880000
CAD
$127.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tools, Stripping and cutting tool, Flexible and solid conductors with halogen-free insulation, 6mm², 25mm
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
Dimensions And Weights
| Width | 190 mm |
|---|---|
| Height | 99 mm |
| Depth | 22 mm |
| Weight | 222 g |
| Width (inches) | 7.48 inch |
|---|---|
| Height (inches) | 3.898 inch |
| Depth (inches) | 0.866 inch |
| Net weight | 221.4 g |
Stripping Tools
| Cable type | Flexible and solid conductors with halogen-free insulation |
|---|---|
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. AWG | AWG 24 |
| Conductor cross-section (cutting capacity) | 6 mm² |
|---|---|
| Conductor cross-section, min. | 0.25 mm² |
| Stripping length, max. | 25 mm |
Classifications
| ETIM 6.0 | EC002109 |
|---|---|
| eClass 9.0 | 21-04-37-06 |
| eClass 10.0 | 21-04-37-06 |
| ETIM 7.0 | EC002109 |
|---|---|
| eClass 9.1 | 21-04-37-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
