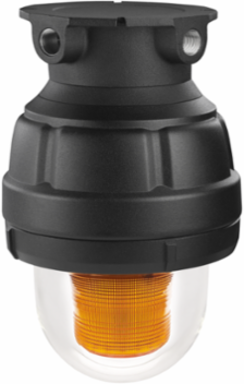

Federal Signal 27XST-024A-4-MOD Strobe Light, Explosion-Proof, Limited In-Rush, 4-Wire, UL and cUL CID1, 24VDC, Amber, Mount Sold Separately
Federal Signal 27XST-024A-4-MOD Strobe Light, Explosion-Proof, Limited In-Rush, 4-Wire, UL and cUL CID1, 24VDC, Amber, Mount Sold Separately
- MPN: 27XST-024A-4-MOD
- UPC: 782979233039
- PPN: FDS-27XST-024A-4-MOD
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3563.43/ EA
Description
Model 27XST-024-4-MOD explosion-proof supervised strobe light produces 80 high-intensity flashes per minute. This warning light operates on 24VDC and is unique to the market because it covers an entire range of possible mounting configurations – including dome up.This model features a voltage in-rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in-rush sensitive devices. Corrosion resistance is achieved with a powder coat finish applied over the copper-free aluminum housing. It also has an effective candela (ECP) of 850 and a two million peak candela.For easy installation, the mounting box is first installed and the fixture is then threaded onto the mounting box, making the electrical connection. Electrical continuity is made when five threads are engaged.Model 27XST-024-4-MOD is specifically designed for explosion-proof atmospheres and/or corrosive environments.Because it is easy to install and requires very low maintenance, it is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.
Features
- Approved for mounting in any manner – including dome up
- Available in 24VDC
- 10,000 hour LED
- Six lamp/lens colors: Amber, Blue, Clear, Green, Magenta and Red
- 3/4" NPT pendant, ceiling, and wall mount options available
- Dome guard optional
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
- CSFM Approved
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Black
- Candela Power Peak
- 2000000
- Diameter (in)
- 8.82
- Flashes Per Minute
- 80
- Lens Color
- Amber
- Mount Type
- 3/4-Inch NPT Pendant, Ceiling, Wall
- Operating Temp.
- -67˚ to +150˚F (-55˚ to +66˚C)
- Visual Signals Lens Color
- Amber
- Height
- 11.37 in, 28.8798 cm
Weight13.9 lbs
Candela Effective Power850
Certification ListingCSFM, Marine, UL, cUL
Diameter (mm)224.028
AvailabilityContact Us for Availability
Lens StyleFresnel
Operating Current Amps1.9 @ 24 vdc
Required Mountblack-mounting-kits
Depth11.37 in, 28.8798 cm
Diameter8.82 in, 22.4028 cm
