Strobe Light, Explosion-Proof, Supervised, UL and cUL CID1, 24VDC, Amber, Mount Sold Separately
Federal Signal

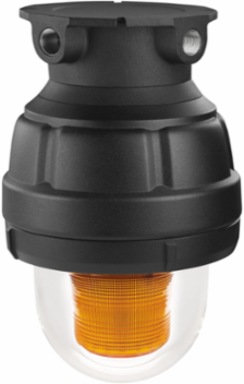

Federal Signal 24XST-024A-MOD Strobe Light, Explosion-Proof, Supervised, UL and cUL CID1, 24VDC, Amber, Mount Sold Separately

  • MPN: 24XST-024A-MOD
  • UPC: 782979232896
  • PPN: FDS-24XST-024A-MOD
  • UNSPSC: 39111706

CAD

$4862.70

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Federal Signal's Model 24XST Explosion-Proof Strobe Light produces 60 high-intensity flashes per minute. The 24XST features a current in-rush limiting PCB design to provide improved compatibility with in-rush sensitive devices. This design limits the peak In-rush to 2A and operates on only 0.71A, when powered by 24VDC. To synchronize strobe lights, purchase the Synchronization Module (SSM) separately.Model 24XST can be paired with a pendant, ceiling or wall mount. The installation process is simple; by pre-installing the mounting box, the fixture can be simply threaded onto the mounting box, making an electrical connection when the threads are engaged.Model 24XST offers a heavy duty, copper-free cast aluminum housing is sealed with a black powder coat paint. This unit is specifically designed for explosion-proof atmospheres and/or corrosive environments. The 24XST is ideal for use in areas such as oil rigs, mines, refineries, and chemical plants.

Features

  • Approved for mounting in any manner– including dome up
  • Available in 24VDC
  • Six lens colors: Amber, Blue, Clear, Green, Magenta and Red
  • 10,000 hour strobe tube
  • 3/4" NPT pendant. ceiling, and wall mount options available
  • Dome guard optional
  • Conformal coated PCB
  • Type 4X, IP66 enclosure
  • IP69K compliant
  • Marine Rated
  • UL and cUL Class I, Division 1, Groups C and D; Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Body Color
Black
Certification Listing
CSFM, Marine, UL, cUL
Diameter (mm)
224.028
Availability
Contact Us for Availability
Lens Style
Fresnel
Operating Current Amps
0.71 @ 24VDC
Required Mount
black-mounting-kits
Depth
11.37 in, 28.8798 cm
Diameter
8.82 in, 22.4028 cm
Weight13.9 lbs
Candela Power Peak280
Diameter (in)8.82
Flashes Per Minute60
Lens ColorAmber
Mount Type3/4-Inch NPT Pendant, Ceiling, Wall
Operating Temp.-67˚ to +150˚F (-55˚ to +65˚C)
Visual Signals Lens ColorAmber
Height11.37 in, 28.8798 cm
