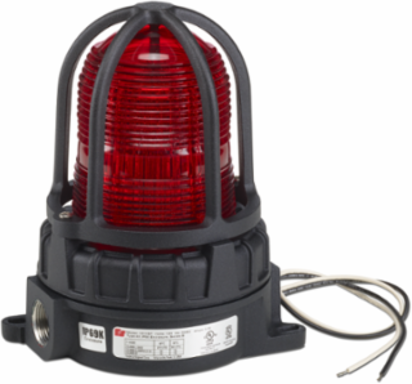

Federal Signal 154XST-S12-24R Strobe Light, Supervised, Hazardous Location, UL and cUL CID2, Surface Mount, 12-24VDC, Red
- MPN: 154XST-S12-24R
- UPC: 782979230052
- PPN: FDS-154XST-S12-24R
- UNSPSC: 39111706
CAD
$2006.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Federal Signal's Model 154XST hazardous location strobe light is available in 24VDC with a 4-wire supervisable power circuit for fire alarm* and suppression supervised control panels.This hazardous location warning light has an aluminum base, coated for corrosion resistance that is ready for surface mounting or mounting on a 3/4-inch pipe. The dome guard (included) fits over the glass dome to protect it against accidental collision with moving equipment, such as forklifts.This warning light can be used for plant evacuation or other communication needs.* Fire alarm applications are outside the scope of the UL and cUL certification, consult local Authorities Having Jurisdiction (AHJ)
Features
- Available in 24VDC
- Four wires and supervisory diode
- Five dome colors: Amber, Blue, Clear, Green and Red
- 3/4-inch NPT pipe mount or surface mount options
- Dome guard included
- Conformal coated PCBA
- Indoor/outdoor use
- Type 4X, IP66 enclosure
- IP69K compliant
- Marine Rated
- UL and cUL for Class I, Division 2, Groups A, B, C and D; Class II, Division 1, Groups E, F and G; Class III; Class I, Zone 2, Group IIC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Body Color
- Black
- Certification Listing
- CSFM, Marine, UL, cUL
- Diameter (mm)
- 141.732
- Availability
- Contact Us for Availability
- Mount Type
- Surface
- Visual Signals Lens Color
- Red
- Depth
- 8.18 in, 20.7772 cm
- Diameter
- 5.58 in, 14.1732 cm
Weight3.8 lbs
Candela Power Peak520000
Diameter (in)5.58
Flashes Per Minute80
Lens ColorRed
Operating Temp.-67˚ to +150˚F (-55˚ to +66˚C)
Visual Signals Mount TypeSurface
Height8.18 in, 20.7772 cm
