Panduit

Panduit ESV14BX-L StrongHold™ ESV14BX-L Butt Splice

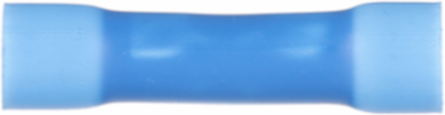

StrongHold™ ESV14BX-L Butt Splice
  • MPN: ESV14BX-L
  • UPC: 074983279814
  • PPN: PAN-ESV14BX-L
  • UNSPSC: 39121409

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$0.41/ EA

Description

StrongHold™ Butt Splice, Vinyl Insulated, 16 - 14 AWG, Blue.

Specifications

Specifications

Country of Origin
Mexico
Product Segment
IEI
Barrel Type
Funnel Entry
Minimum Metric Conductor Size (mm²)
1.5
Overall Length (In.)
1.04
Maximum Voltage (kV)
0.6
Wire Strip Length (mm)
7.9
Overall Length (mm)
26.4
Barrel Length (mm)
26.4
Sub Brand
StrongHold™
Color Code
Blue
Any Reason Not to SellN
Product TypeButt Splice
Base MaterialCopper
Wire Strip Length (In.)5/16
Barrel Length (In.)1.04
Insulation MaterialVinyl
Maximum Metric Conductor Size (mm²)2.5
Maximum Voltage (V)600
CSA Temperature Rating (°C)105
Finish/CoatingTin-Plated
Copper Conductor Size16-14 AWG

Packaging Details

UPC
07498327981
Standard Package Volume Ft3
0.0103
Std Package Height In
.95
Std Package Length In
4.5
Std Package Width In
3.3
Std. Pkg. UOM
Piece
Std. Pkg. Qty.
50
Standard Carton Volume Ft3
0.1031
Std Carton Height In
4.35
Std Carton Length In
9.1
Std Carton Width In
4.6
Std Ctn Qty
500
EAN
00074983279814
ARRA Compliant
Y
Hazardous Material Flag
N
Pallet Quantity
0
Pallet Weight
0.0000
GTIN Package00074983279814
Standard Package Weight Pounds0.1000
Std Package Height MM24.13
Std Package Length MM114.3
Std Package Width MM83.82
UOM EA PKPK
GTIN Carton50074983279819
Standard Carton Weight Pounds1.0000
Std Carton Height MM110.49
Std Carton Length MM231.14
Std Carton Width MM116.84
Min. Order UOMPiece
REACH StatusN
Mercury Content IndicatorN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
