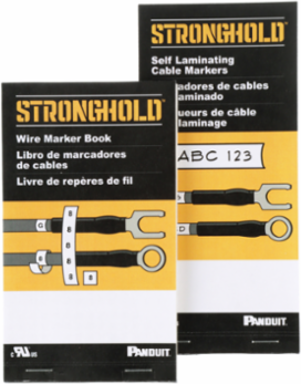

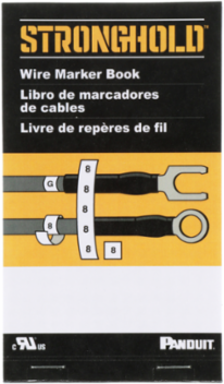

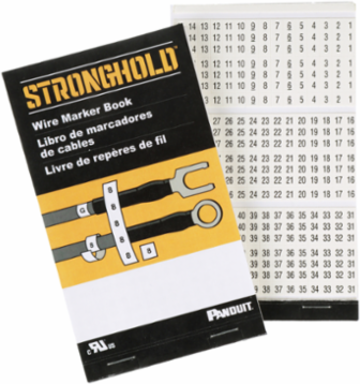

Panduit PCMB-3 StrongHold™ PCMB-3 Pre-Printed Wire Marker Book, 3, Vinyl Cloth, White, Black
Panduit PCMB-3 StrongHold™ PCMB-3 Pre-Printed Wire Marker Book, 3, Vinyl Cloth, White, Black
- MPN: PCMB-3
- UPC: 074983948024
- PPN: PAN-PCMB-3
- UNSPSC: 39131509
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$37.20/ EA
Description

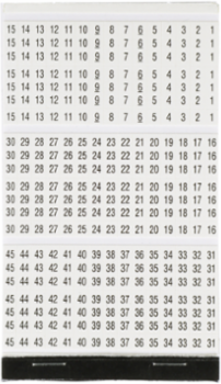

StrongHold PCMB-3 Pre-Printed Wire Marker Books are conveniently pocket-sized, containing wire labels printed on vinyl cloth. Markers are durable enough for up to 5 years outdoor UV Resistance, oil and abrasions. They can also be torn in half to label each end of the conductor. The legend includes 1-45, there are 10 markers per legend, and 10 pages per book.
Specifications
Packaging Details
- UPC
- 07498394802
- Standard Package Volume Ft3
- 0.0133
- Std Package Height In
- .65
- Std Package Length In
- 6.2
- Std Package Width In
- 3.8
- Std. Pkg. UOM
- Book
- Std. Pkg. Qty.
- 1
- Standard Carton Volume Ft3
- 0.1329
- Std Carton Height In
- 4.8
- Std Carton Length In
- 10.3
- Std Carton Width In
- 6.5
- Std Ctn Qty
- 10
- EAN
- 00074983948024
- ARRA Compliant
- Y
- Hazardous Material Flag
- N
- Pallet Quantity
- 2,900
- Pallet Weight
- 348.0000
GTIN Package00074983948024
Standard Package Weight Pounds0.1200
Std Package Height MM16.51
Std Package Length MM157.48
Std Package Width MM96.52
UOM EA PKEA
GTIN Carton50074983948029
Standard Carton Weight Pounds1.2000
Std Carton Height MM121.92
Std Carton Length MM261.62
Std Carton Width MM165.1
Min. Order UOMBook
REACH StatusN
Mercury Content IndicatorN
Min Order Qty10.0000
Pallet Volume38.531359
RoHS CompliantCompliant
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- Sub Brand
- StrongHold™
- Product Type
- Pre-Printed Wire Marker Book
- Minimum Operating Temperature (°C)
- -40
- Number of Markers
- 100
- Maximum Operating Temperature (°C)
- 77
- Background Color
- White
- Maximum Operating Temperature (°F)
- 170
- Maximum Cable Diameter (In.)
- 0.38
- Minimum Operating Temperature (°F)
- -40
Any Reason Not to SellN
Marker Length (In.)1.38
Marker Width (mm)5.6
Number of Markers per Legend10
Legend1 thru 45
MaterialVinyl
Marker Length (mm)35.1
Maximum Cable Diameter (mm)9.7
Legend ColorBlack
Marker Width (In.)0.22
