Ilsco

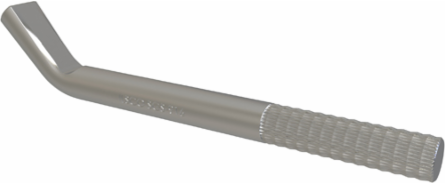

Ilsco SGS-916 Structural Steel Ground Stud, 5/8in Nominal Rod Side, Equivalent Conductor Size 1/0, Tin Plated

Structural Steel Ground Stud, 5/8in Nominal Rod Side, Equivalent Conductor Size 1/0, Tin Plated
  • MPN: SGS-916
  • UPC: 0783669005462
  • PPN: ILC-SGS-916

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$84.71/ EA

Specifications

Dimensions

Height BX (IN)
2
Length (mm)
150.368
Outside Diameter (mm)
14.2748
Tang Length (mm)
34.925
Tang Thickness (mm)
10.287
Tang Width (mm)
17.2212
Width BX (IN)
6.188
Height (mm)117.3988
Outside Diameter (IN)0.562
Tang Length (IN)1.375
Tang Thickness (IN)0.405
Tang Width (IN)0.678
Weight BX (LB)2.647
Width (mm)17.2212

Testing Standards

Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Additional Class Attributes

Connection
Mechanical

Material and Finish

Connector Finish
Tin
MaterialSteel

Conductor Ranges

Nominal Rod Size
5/8
Wire Equivalent1/0 AWG

General

Bag Quantity
1
NEMA Code
0-000-1
Carton Quantity DescriptionSTD PACK QTY 5
UPC Code78366900546

Specifications

Height
4.622 in | 117.3988 mm
Weight
0.49977610223907 lbs
Length5.92 in | 150.368 mm
Width0.678 in | 17.2212 mm
