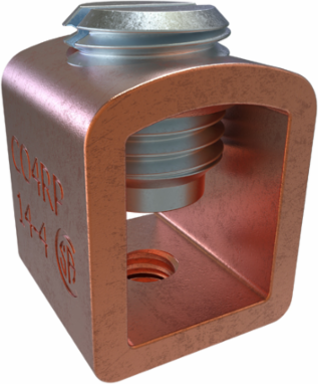

ILSCO CO4RP Copper Box-Type Mechanical Lug, Conductor Range 4-14, 1 Hole, Round Boss
- MPN: CO4RP
- UPC: 783669027105
- PPN: ILC-CO-4RP
- UNSPSC: 39121408
CAD
$3.27
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Box-Type Mechanical Lug, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size #10-32 in, UL 486A/B Recognized, C22.2 No. 65-03, Copper Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Copper, 1 poles,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366902710
- Dual Rated
- FALSE
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Drive Type Main
- Slotted
- Wire Binding Screw Size
- 16-May
- Length (IN)
- 0.468
- Width (IN)
- 0.453
- Height (IN)
- 0.602
- Weight (LB)
- 0.025
- Mounting Hole Diameter (IN)
- 0.164
- Mounting Hole Spacing (mm)
- 0
- Size of Boss (mm)
- 5.8166
- Conductor Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
- Temperature Rating
- 90°C
- CSA File Number
- LR-29601
- UL File Number
- E6207
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Conductor Type
- Solid,Stranded
- Number of Conductors
- 1
- Number of Poles
- 1
- Number of Ports Main
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Conductor Size CU (Primary, run, main, line)10 Sol,12 Sol,14 Sol,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Number of Wire Binding Screws per Port1
Wire Binding Torque10 - 14 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
Length (mm)11.8872
Width (mm)11.5062
Height (mm)15.2908
Mounting Bolt/Stud Size (mm)26212.8
Mounting Hole Diameter (mm)4.1656
Size of Boss (IN)0.229
MaterialCopper
Wire Binding Hardware MaterialSteel
ColorCopper
Voltage Rating35 kV
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 486A/B Recognized
ConnectionMechanical
Mounting Hole TypeTap
Number of Mounting Holes1
Number of Ports / Wireways1
Style of BossRound
CrossSellDE-OX-8OZ
