Weidmuller 2580860000 SU 10.16HP/04/270MF2 3.5AG BK BX

MPN: 2580860000
PPN: WDM-2580860000

$8.34

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

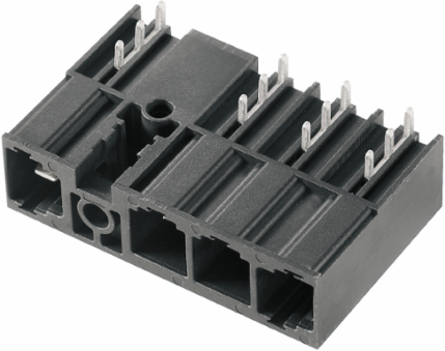

PCB plug-in connector, male header, THT solder connection, 10.16 mm, Number of poles: 4, 270°, Solder pin length (l): 3.5 mm, black, Box

Specifications

Rated Data Acc. To Ul 1059

Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	600 V
Rated current (Use group C / UL 1059)	60 A
Clearance distance, min.	8.9 mm

Rated voltage (Use group C / UL 1059)	300 V
Rated current (Use group B / UL 1059)	60 A
Rated current (Use group D / UL 1059)	5 A
Creepage distance, min.	10.5 mm

Dimensions And Weights

Net weight	17.68 g

Rated Data Acc. To Iec

Rated current, min. number of poles (Tu=20°C)	78.3 A
Rated current, min. number of poles (Tu=40°C)	70.6 A
Rated voltage for surge voltage class / pollution degree II/2	1,000 V
Rated voltage for surge voltage class / pollution degree III/3	690 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	8 kV
Clearance, min.	8.9 mm

Rated current, max. number of poles (Tu=20°C)	67.9 A
Rated current, max. number of poles (Tu=40°C)	61.3 A
Rated voltage for surge voltage class / pollution degree III/2	1,000 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	6 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	8 kV
Creepage distance, min.	10.5 mm

Material Data

Colour	black
Insulation strength	≥ 108 Ω
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	120 °C
Temperature range, installation, max.	120 °C

Colour chart (similar)	RAL 9011
GWFI	960 °C
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Classifications

ETIM 6.0	EC002637
eClass 9.0	27-44-04-02
eClass 10.0	27-44-04-02

ETIM 7.0	EC002637
eClass 9.1	27-44-04-02

Packing

Packaging	Box
VPE width	135 mm

VPE length	350 mm
VPE height	47 mm

System Specifications

Product family	OMNIMATE Power - series BU/SU 10.16HP
Mounting onto the PCB	THT solder connection
Pitch in inches (P)	0.4 inch
Number of poles	4
Solder pin length tolerance	+0.1 / -0.3 mm
Solder pin dimensions = d tolerance	+0.1 / -0.1 mm
L1 in inches	1.2 inch
Plugging cycles	≤ 50

Type of connection	Board connection
Pitch in mm (P)	10.16 mm
Outgoing elbow	270°
Solder pin length (l)	3.5 mm
Solder pin dimensions	1.2 x 1.1 mm
L1 in mm	30.48 mm
Pin series quantity	2

Notes

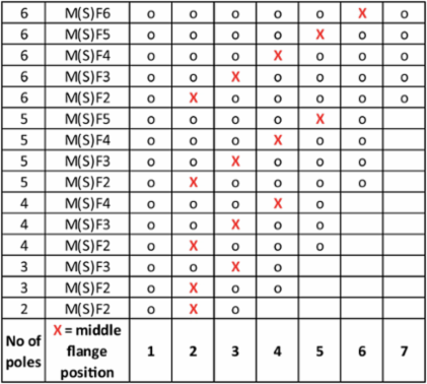

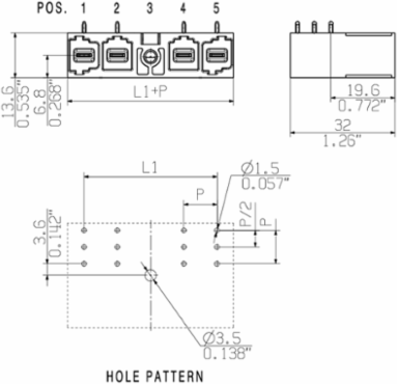

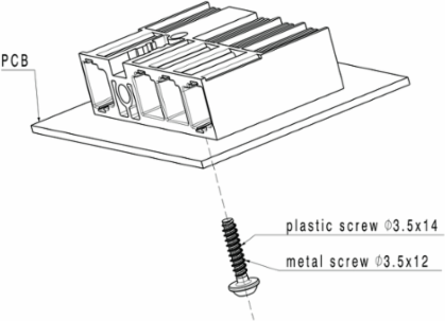

Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
