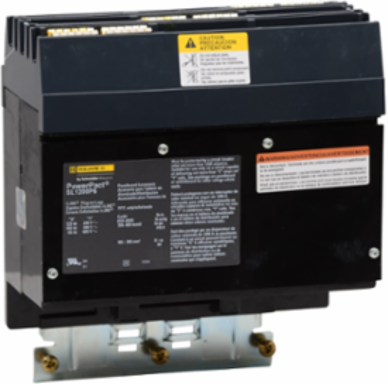

Square D SL1200P6 I-Line Sub Feed Lugs, 1200A, Accepts 350 to 600 kcmil
- MPN: SL1200P6
- UPC: 785901851875
- PPN: SCH-SL1200P6
- UNSPSC: 39121601
CAD
$2115.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This is a connection accessory for I-Line panelboards. They have plug on jaw construction and plug on to the I-Line bus stack as branch circuit breakers. Lugs on these devices accommodate the same size wire as the equivalent ampere rated circuit breaker. The lug kit is 3 pole and rated for 1200A. The lugs accept 350kcmil to 600kcmil and accept 3 conductors per lug. This lug kit complies with UL standards.
Features
- Worldwide availability with unique global part numbers
- Flexible and simple offer with proven performance
- Direct access to energy metering and energy efficiency
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 1200-1200 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Rohs Eur In Scope | Yes |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | panelboard |
| Material | aluminium |
| Mounting Mode | by screws |
| Product Or Component Type | sub-feed lug |
| Range Of Product | I-Line |
| Sustainable Packaging | No |
| Certificate Agency | UL |
| Customs Code | 8536908585 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2025-11-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 3 x 350...600 kcmil aluminium/copper |
| Energy Efficiency Optimized | False |
| Mounting Location | inside the enclosure |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Type | circuit breaker protection |
| Returnability | Yes |
| Height Nominal | 229 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Eu Rohs Directive | Under investigation |
| Packaging Without Single Use Plastic | No |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Packaging Made With Recycled Cardboard | Yes |
General Attributes
| Product Or Component Type | sub-feed lug |
|---|
| Range Of Product | I-Line |
|---|
