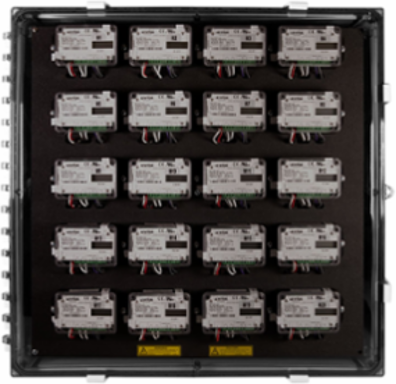

Leviton MXT12-2T0 Submeter Mini Meter MMU 12 X 200A XL

Description

Features

• Suitable for both new construction and retrofit applications, Mini Meter (kWh) MMUs are available in 3 sizes:
• Medium: Houses 2 to 4 Mini Meters
• Large: Houses 5 to 8 Mini Meters
• Extra-Large: Houses 9 to 20 Mini Meters

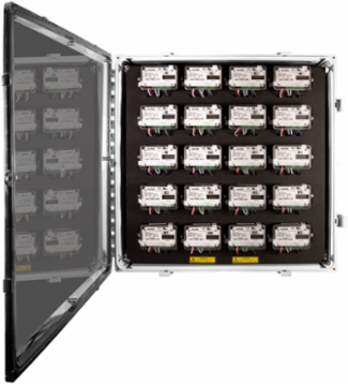

• Clear door allowing visibility to meter LCD
• All wiring is done behind the front panel
• No custom configuration form required
• Basic panels are pre-configured with the following options:
• Terminals only for meter pulse outputs
• Integrated A8911 High Density Pulse Module (HDPM)
• Integrated R9120 Modhopper Wireless Transceiver (MH)
• Integrated A8810/A7810 Data Acquisition Server (DAS)
• VerifEye™ Mini Meter™ Configured Multiple Meter Units (MMUs) are designed for multi-tenant submetering applications in which multiple single phase (120/240V 1PH 3W and 120/208V 2PH 3W) loads are fed from the same power distribution panel to be metered. Each VerifEye Mini Meter installed in an MMU is a revenue-grade*, ANSI C12.20-compliant energy meter that is backed by Leviton’s best in the industry 5-year warranty. Mini Meter MMUs are NEMA 4X rated and UL Listed, suitable for either indoor or outdoor installations. Each Mini Meter has built-in pulse outputs for connection to a High Density Pulse Module, Wireless AMR Transceiver, or a Data Acquisition Server with pulse inputs.
