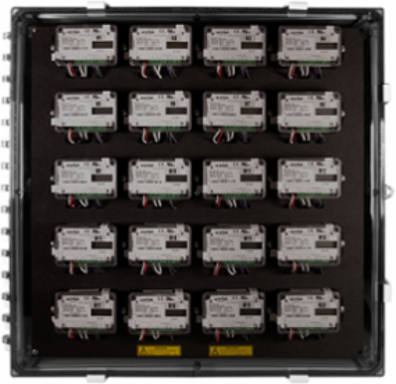

Leviton MXT16-2T0 Submeter Mini Meter MMU 16 X 200A XL
Leviton MXT16-2T0 Submeter Mini Meter MMU 16 X 200A XL
- MPN: MXT16-2T0
- UPC: 078477324325
- PPN: LEV-MXT16-2T0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Mini Meter MMU - XL Enclosure, 16 Meters with Terminals Only
Features
- Suitable for both new construction and retrofit applications, Mini Meter (kWh) MMUs are available in 3 sizes:
- Medium: Houses 2 to 4 Mini Meters
- Large: Houses 5 to 8 Mini Meters
- Extra-Large: Houses 9 to 20 Mini Meters

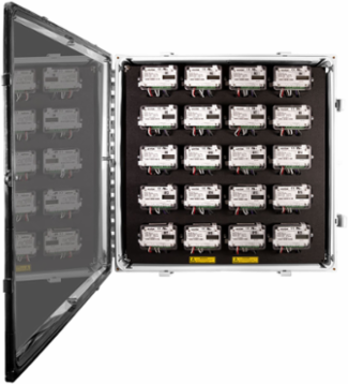

- Clear door allowing visibility to meter LCD
- All wiring is done behind the front panel
- No custom configuration form required
- Basic panels are pre-configured with the following options:
- Terminals only for meter pulse outputs
- Integrated A8911 High Density Pulse Module (HDPM)
- Integrated R9120 Modhopper Wireless Transceiver (MH)
- Integrated A8810/A7810 Data Acquisition Server (DAS)
- VerifEye™ Mini Meter™ Configured Multiple Meter Units (MMUs) are designed for multi-tenant submetering applications in which multiple single phase (120/240V 1PH 3W and 120/208V 2PH 3W) loads are fed from the same power distribution panel to be metered. Each VerifEye Mini Meter installed in an MMU is a revenue-grade*, ANSI C12.20-compliant energy meter that is backed by Leviton’s best in the industry 5-year warranty. Mini Meter MMUs are NEMA 4X rated and UL Listed, suitable for either indoor or outdoor installations. Each Mini Meter has built-in pulse outputs for connection to a High Density Pulse Module, Wireless AMR Transceiver, or a Data Acquisition Server with pulse inputs.
Specifications
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Product Features
- Configuration
- 16 MMU
- Product Line
- Mini Meter MMU
- Size
- Extra-Large
Meter ConfigurationMultiple Meter Unit
Product TypeElectric Submeter
Standards and Certifications
- Buy American Act (BAA) Compliant
- Yes
