Leviton

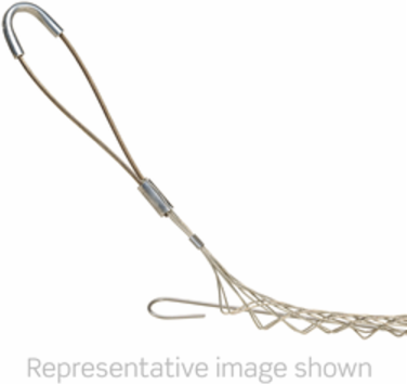

Leviton L9672-100 Support Grip, 0.63-0.75"

Support Grip, 0.63-0.75"
  • MPN: L9672-100
  • UPC: 078477573143
  • PPN: LEV-L9672-100

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$93.84/ EA

Description

Support, Offset Eye, Rod Closing, Single Weave, Stainless Steel, 0.63"-0.75" Cable Diameter Range - Breakload is 750 LBS, 4.0" Eye Length, 9.0" Mesh Length

Features

  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
  • Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables

Specifications

Material Specifications

Mesh Material
304 SS

Mechanical Specifications

Approx. Break Strength
750LBS
Cable Range
0.63"-0.75"
Eye Type
Offset
Mesh Style
Open - Rod Closing
Weave
Single Weave
Bale Length4 in (102 mm)
DutyStandard
Mesh Length9.0"
Standards and CertificationsUL
Workload Safety Factor (lbs)75 lbs (34 kg)

Specifications

Country of Origin
China
RoHS CompliantFalse

Product Features

Device Type
Support Grip

Warranty

Warranty
1-Year Limited
