Leviton

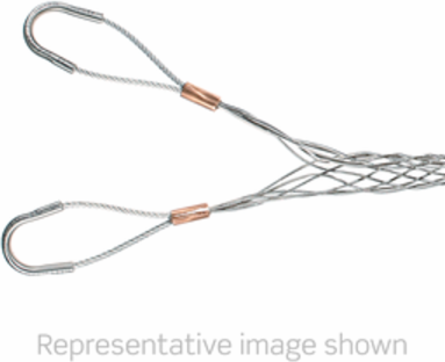

Leviton L9731-100 Support Grip, 0.75- 1.00"

Support Grip, 0.75- 1.00"
  • MPN: L9731-100
  • UPC: 078477579497
  • PPN: LEV-L9731-100

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$295.77/ EA

Description

Support, Double Eye, Heavy Duty, Lace Up, Single Weave, Stainless Steel, 0.75"-1.00" Cable Diameter Range - Breakload is 2080 LBS, 9.0" Eye Length, 13.0" Mesh Length

Features

  • Leviton wire mesh grips are built tough to provide the strength, reliability, and gripping force required for today’s demanding wire mesh applications
  • Support grips distribute the weight of the vertical or sloping runs of electrical and fiber optic cable, metal rods, tubing or hose over the entire length of the grip so the cable is not damaged
  • Use of support grips avoids stress on cable connections and provides needed support for vertically hung cables

Specifications

Material Specifications

Mesh Material
Stainless Steel

Mechanical Specifications

Approx. Break Strength
2,080LBS
Cable Range
0.75"-1.00"
Eye Type
Double
Mesh Style
Open - Lace Closing
Workload Safety Factor (lbs)
693 lbs @ 3:1 (314 kgs @ 3:1)
Bale Length8 in (203.2 mm)
DutyHeavy
Mesh Length13.0"
WeaveDouble Weave

Specifications

Country of Origin
India
RoHS CompliantTrue

Product Features

Device Type
Support Grip

Warranty

Warranty
1-Year Limited
