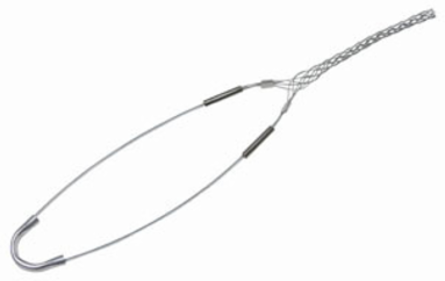

Pass & Seymour FC22 Flexcor Support Grip, Single Eye, 0.22-0.32 Inch Cable Diameter, 1100 lbs Break Strength
- MPN: FC22
- UPC: 785007998702
- PPN: P-S-FC22
CAD
$57.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Flexcor Support Grip, Single Eye, 0.22-0.32 Inch Cable Diameter, 1100 lbs Break Strength
Features
- Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing.
- Bus drop grips are woven of galvanized steel wire.
- They are offered with either the single eye or locking bale attachment.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 9: Mesh Length: 3.5
Documentation & Downloads
Specifications
Key Specifications
- Length
- 3.5 in
- Product Line
- Pass & Seymour
- Eye Style
- Single
- Mesh Length
- 3.5 in
- Special Features
- Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing. Bus drop grips are woven of galvanized steel wire. They are offered with either the single eye or locking bale attachment.
- Minimum Cable Range
- 0.32 in
- Cable Diameter Range
- 0.220-0.320 in
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
Width0.32 in
Country of OriginMexico
TypeSupport Grip
Indoor/OutdoorBoth
Maximum Cable Range0.22 in
Application SectorIndustrial
Approximate Break Strength1100.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionVarious Types of Pulling, Support and Strain Relief Grips
