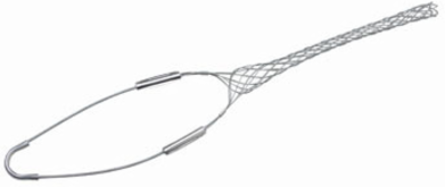

Pass & Seymour FC175U Flexcor Support Grip, Closed Mesh, Cable Diameter 1.75-1.99 Inch, Bale Length 14 Inch, 2640 lbs Break Strength
- MPN: FC175U
- UPC: 785007980721
- PPN: P-S-FC175U
CAD
$155.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Flexcor Support Grip, Closed Mesh, Cable Diameter 1.75-1.99 Inch, Bale Length 14 Inch, 2640 lbs Break Strength
Features
- Closed mesh support grips are used when the end of the cable is accessible.
- Standard duty closed mesh support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 14: Mesh Length: 20
Documentation & Downloads
Specifications
Key Specifications
- Length
- 20.0 in
- Special Features
- Standard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
- Country of Origin
- Mexico
- Mesh Type
- Closed
- Indoor/Outdoor
- Both
- Maximum Cable Range
- 1.75 in
- Application Sector
- Industrial
- Approximate Break Strength
- 2640.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Width1.99 in
Product LinePass & Seymour
Eye StyleSingle
TypeSupport Grip
Mesh Length20.0 in
Minimum Cable Range1.99 in
Cable Diameter Range1.75-1.99 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
