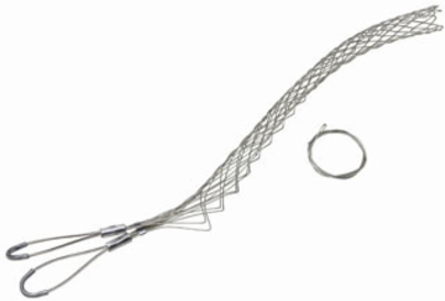

Pass & Seymour FS350UU Flexcor Support Grips Standard Duty, 3.50-3.99 Inch Diameter, 5280 lbs Breaking Strength
- MPN: FS350UU
- UPC: 785007984606
- PPN: P-S-FS350UU
CAD
$256.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Flexcor Support Grips Standard Duty, 3.50-3.99 Inch Diameter, 5280 lbs Breaking Strength
Features
- Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation.
- Split lace support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 8: Mesh Length: 28
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Special Features
- Split lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation. Support grips are woven of corrosion-resistant tinned-bronze wire.
- Type
- Support Grip
- Mesh Length
- 27.0 in
- Maximum Cable Range
- 3.5 in
- Application Sector
- Industrial
- Approximate Break Strength
- 4900.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Product LinePass & Seymour
Eye StyleDouble
Indoor/OutdoorBoth
Mesh TypeSplit Lace
Minimum Cable Range3.99 in
Cable Diameter Range3.50-3.99 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
