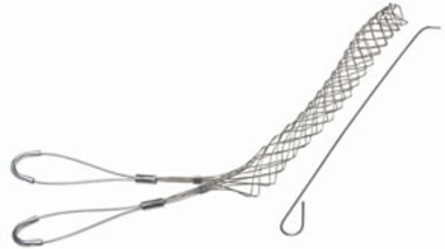

Pass & Seymour FR100UU Flexcor Support Grip, Standard Duty, Cable Diameter 1.00-1.24 Inch, Bale Length 5 Inch, Break Strength 1680 lbs.
Pass & Seymour FR100UU Flexcor Support Grip, Standard Duty, Cable Diameter 1.00-1.24 Inch, Bale Length 5 Inch, Break Strength 1680 lbs.
- MPN: FR100UU
- UPC: 785007983210
- PPN: P-S-FR100UU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$92.56/ EA
Description
FR100UU: Standard Duty, Split Rod, Double-Eye, Cable Diameter 1.00 - 1.24 inches, Bale Length 5-in, Mesh Length 15-in, Break Strength 1680 lbs.
Features
- Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary.
- Split rod support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 5: Mesh Length: 15
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Type
- Support Grip
- Mesh Length
- 12.5 in
- Maximum Cable Range
- 1.0 in
- Application Sector
- Industrial
- Approximate Break Strength
- 1610.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Special FeaturesSplit rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary. Support grips are woven of corrosion-resistant tinned-bronze wire.
Eye StyleDouble
Indoor/OutdoorBoth
Mesh TypeSplit Rod
Minimum Cable Range1.24 in
Cable Diameter Range1.00-1.24 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
