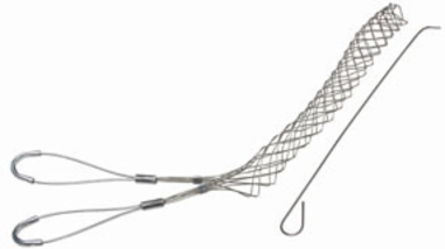

Pass & Seymour FR050UU Flexcor Support Grips Standard Duty, 0.50-0.61 Inch Cable Diameter, 770 lbs Break Strength, Bale Length 4 Inch, Mesh Length 11 Inch
Pass & Seymour FR050UU Flexcor Support Grips Standard Duty, 0.50-0.61 Inch Cable Diameter, 770 lbs Break Strength, Bale Length 4 Inch, Mesh Length 11 Inch
- MPN: FR050UU
- UPC: 785007983180
- PPN: P-S-FR050UU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$76.46/ EA
Description
FR050UU: Standard Duty, Split Rod, Double-Eye, Cable Diameter 0.50 - 0.61 inches, Bale Length 4-in, Mesh Length 11-in, Break Strength 770 lbs.
Features
- Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary.
- Split rod support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 4: Mesh Length: 11
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Type
- Support Grip
- Indoor/Outdoor
- Both
- Maximum Cable Range
- 0.5 in
- Application Sector
- Industrial
- Cable Diameter Range
- 0.500-0.620 in
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Special FeaturesSplit rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary. Support grips are woven of corrosion-resistant tinned-bronze wire.
Eye StyleDouble
Mesh Length8.5 in
Mesh TypeSplit Rod
Minimum Cable Range0.61 in
Approximate Break Strength790.0 lb
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
