Pass & Seymour FR075OF Flexcor Support Grip, Standard Duty, Offset Eye, 0.75-0.99 Inch Cable Diameter
Pass & Seymour FR075OF Flexcor Support Grip, Standard Duty, Offset Eye, 0.75-0.99 Inch Cable Diameter
- MPN: FR075OF
- UPC: 785007982541
- PPN: P-S-FR075OF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$76.46/ EA
Description

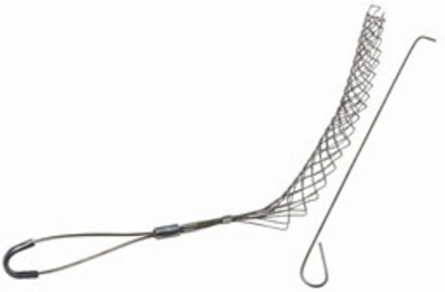

FR075OF: Standard Duty, Split Rod, Offset Eye, Cable Diameter 0.75 - 0.99 inches, Bale Length 4-in, Mesh Length 14-in
Features
- Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary.
- Split rod support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 4: Mesh Length: 14
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Type
- Support Grip
- Mesh Length
- 10.0 in
- Maximum Cable Range
- 0.75 in
- Application Sector
- Industrial
- Cable Diameter Range
- 0.740-0.990 in
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Support and Strain Relief Grips, Various Types of Pulling
Special FeaturesSplit rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary. Support grips are woven of corrosion-resistant tinned-bronze wire.
Eye StyleOffset
Indoor/OutdoorBoth
Mesh TypeSplit Rod
Minimum Cable Range0.99 in
Approximate Break Strength950.0 lb
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
