Harmony XB5R Support for Mobile Box, 57.8mm x 75.5mm x 84mm, Polycarbonate
Schneider Electric

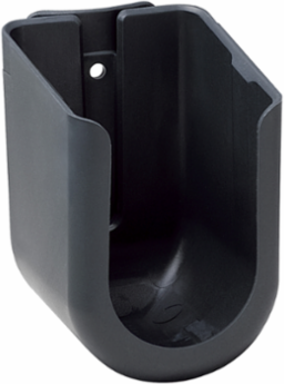

Schneider Electric ZBRACS Harmony XB5R Support for Mobile Box, 57.8mm x 75.5mm x 84mm, Polycarbonate

  • MPN: ZBRACS
  • PPN: SCH-ZBRACS
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $33.40

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This product is part of the Harmony XB5R range, an offer of Ø22 mm battery-less and wireless pushbuttons." "This tube or wall support is an accessory for mobile box." "The enclosure is made of polycarbonate and available in dark grey color. Its dimensions are 57.8mm (width) x 75.5mm (depth) x 84mm (height). It weighs 0.064kg." "It is ideal for automotive and logistic centers conveying systems, bottle filling, palletizer and wrapping machines. It is also suitable for lighting and door opening." "This product is compatible with ZBRM21 and ZBRM22." "Complete freedom to place or move the wireless pushbutton anywhere. Battery less devices for no maintenance, no recharge and no recycling." "Harmony universal wireless batteryless devices are compatible with the Ø 22mm Harmony XB4-XB5 actuators."

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Hungary, United States

    Physical Attributes

    Cad Overall Height
    88 mm
    Color
    dark grey
    Cad Overall Width87 mm

    Important Information Attributes

    Carbon Footprint Of The Distribution Phase [A4]
    0.01419984, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.002401344, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2026-03-26
    Stocking Flag
    Y
    Weee Scope
    Out
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Product Kit Identifier
    N
    Material
    polycarbonate
    Product Destination
    ZBRM handy box
    Range Of Product
    Harmony XB5R
    Software Version
    EIME v5.8.1
    Total Lifecycle Carbon Footprint
    0.9 kg CO2 eq.
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
    Energy Model - Manufacturing [A1-a3]
    Energy model used: France
    Energy Model - Use [B6]
    Electricity Mix; AC; < 1kV; EU-27
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Air Pollution (M3) Manufacturing [A1-a3]
    80.9664
    Customs Code
    3926909989
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.04494768
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.822336
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1103010EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Compatibility CodeXB5R
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typesupport
    ReturnabilityYes
    Sustainable PackagingYes
    Pep CodeENVPEP101106EN
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
    Package Weight(Lbs)90.000 g
    Warranty (In Months)18
    Water Pollution (M3) Manufacturing [A1-a3]127.2

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    0.883884864
    Environmental Disclosure
    ENVPEP101106EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-11-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1103010EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP101106EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    support
    Range Of ProductHarmony XB5R

    ETIM

    ETIM 8
    EC002024
    ETIM 9EC002024
