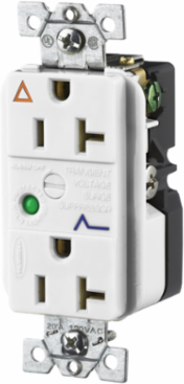

Hubbell Wiring Device-Kellems IG5362WSA Surge Protective Duplex Receptacle, 20A 125V, Isolated Ground, White
Hubbell Wiring Device-Kellems IG5362WSA Surge Protective Duplex Receptacle, 20A 125V, Isolated Ground, White
- MPN: IG5362WSA
- UPC: 783585060866
- PPN: HBL-IG5362WSA
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$273.18/ EA
Description
Surge Protective Devices, SPIKESHIELD IG TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, White
Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
- Isolated Ground
Specifications
Certifications
- EU RoHS Indicator
- No
Specifications
- Color
- White
- Current / Amperage Rating
- 20 A
- Each - Width
- 2.200 in
- Performance
- Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
- Application
- Decorator Duplex with Light and Alarm
- Frequency Rating
- 60 Hz
- Outlet
- Straight Blade
- Response Time
- 5
- Standard
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Voltage Rating
- 125 V
- Connectivity
- Terminal Screws
- Nema Rating
- 5-20R
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG5362WS
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Specification Grade
- BOX SIZE
- 4.200x11.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585060866
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
Country of OriginCN
Width2.200 in
Industry Standard(s)CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Amperage Rating20 A
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Temperature32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
PhaseSingle Phase
Special FeaturesIsolated Ground
TypeDuplex
Voltage Rating Description125 V
Display SizeStandard
StyleIsolated Ground
Description - InvoiceDUP SPD RCPT, IG, 20A 125V, 5-20R, WH
Harmonization Code8536309999
MSDS FlagNo
Sub Class CodeA44A420
Current Rating20 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight16.250 lb.
Lowest Level UOMEach
