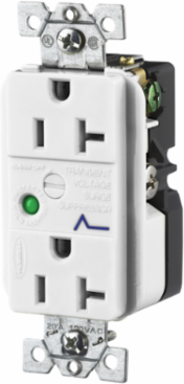

Hubbell Wiring Device-Kellems HBL5360WSA Duplex Surge Protective Receptacle, 20A 125V, 5-20R, White
Hubbell Wiring Device-Kellems HBL5360WSA Duplex Surge Protective Receptacle, 20A 125V, 5-20R, White
- MPN: HBL5360WSA
- UPC: 783585219899
- PPN: HBL-HBL5360WSA
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$214.82/ EA
Description
Surge Protective Devices, Straight Blade Receptacle, Duplex, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White
Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
- Standard Product
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Amperage Rating
- 20 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Duplex
- Voltage Rating Description
- 125 V
- Connectivity
- Terminal Screws
- Nema Rating
- 5-20R
- Description - Invoice
- DUP SPD RCPT, 20A 125V, 5-20R, WH
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- None
- Series
- Specification Grade
- BOX SIZE
- 4.300x10.900x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585219899
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585219898
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ColorWhite
Width2.200 in
PerformanceElectrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextHBL5360WSA AutoCAD Drawing
Display SizeStandard
Class CodeA44
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA44A420
Current Rating20 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight15.900 lb.
Lowest Level UOMEach
Pallet Height46.000 in
Pallet Weight1113.000 lb.
Certifications
- EU RoHS Indicator
- No
