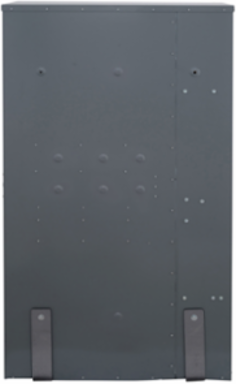

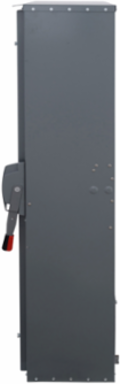

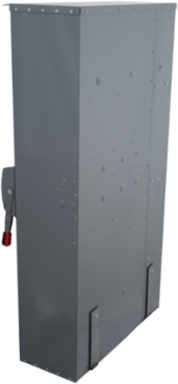

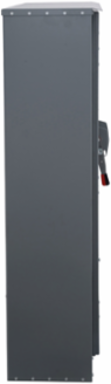

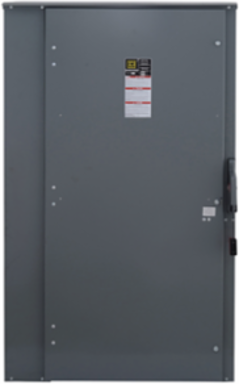

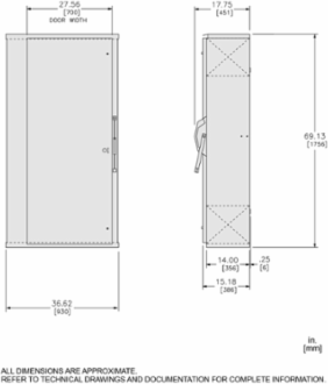

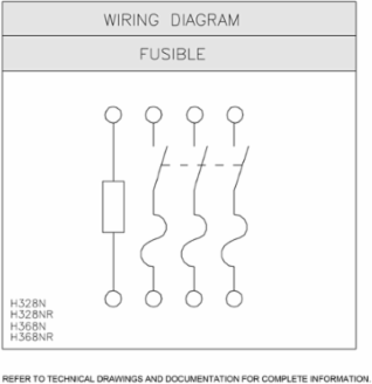

Square D H328NR Heavy Duty Safety Switch 1200A 3P NEMA 3R 36.62 Inch x 17.75 Inch
- MPN: H328NR
- UPC: 785901442455
- PPN: SCH-H328NR
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Safety Switch 1200A 3P NEMA 3R 36.62 Inch x 17.75 Inch
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth17.75 in
Complementary Attributes
- Line Rated Current
- 1200 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Hp
- 50 hp at 240 V AC 50-60 Hz for 1 phase motors, 100 hp at 240 V AC 50-60 Hz for 3 phase motors, 250 hp at 240 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.8059580189361879, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.07194881770817735, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 2 462 kg CO2 eq., 2461.5930719381868
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1917
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- fusible disconnect
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 2 467 kg CO2 eq.
- Pep Code
- ENVPEP2503030EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 69.13 in
- Certificate Agency
- UL listed file E2875
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 167.829 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage250 V DC, 240 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 0.9645561446428399
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.014002140520345
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 3/0...750 kcmil copper or aluminium
Device Compositionneutral (factory installed)
Electrical Connectionlugs
Fuse TypeL
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv6.2.4
Tightening Torque375-375 lbf.in 85.01-380 mm² (AWG 3/0...750 kcmil)
Wiring Configuration4-wire (3PH + G)
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %93
Width Nominal36.62 in
Short-circuit Current200 kA maximum for L
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503030EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint2467.4495370599943
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R galvannealed steel
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503030EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
