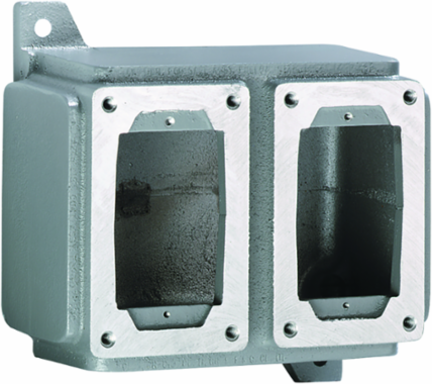

Killark SWB-18 Aluminum Double-Gang Device Body Hub Size 1-1/2 Inch for Hazardous Locations
Killark SWB-18 Aluminum Double-Gang Device Body Hub Size 1-1/2 Inch for Hazardous Locations
- MPN: SWB-18
- UPC: 783936630205
- PPN: HBL-SWB-18
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$531.49/ EA
Description
SWB Series - Aluminum Double-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 1-1/2 Inch Max
Features
- Copper free cast aluminum alloy.
- Designed for custom drilled and tapped conduit openings on all four sides and the back.
- Ground flange joint between bolted cover and box provide required flame path.
- Accepts both miniature and standard size push buttons.
- Internal ground screw.
- Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ½” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.
Specifications
Specifications
- Buy American Compliant
- Yes
- Size
- 8.75 in x 6 in x 6.75 in
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- MX
- Dimensions
- 8.75 in x 6 in x 6.75 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- Max. 1-1/2"
- Weight
- 5.44 lb.
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
- Type
- Aluminum Device Body
- Description - Invoice
- DEEP DEVICE BODIES 1-1/2"
- Harmonization Code
- 7616999999
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 5.44
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
MountingWall
Special FeaturesKillark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ½” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.
ColorGray
Depth3-5/16
Each - Width6.000 in
Height6.75 in
Length8.75 in
Width6 in
Mounting TypeWall
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360
SeriesSWB Series
Carton - SCC-14 Next Lower Level Sub Pack00783936630205
Certifications
- EU RoHS Indicator
- Contact Manufacturer
