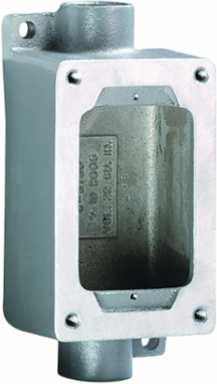

Killark SWB-4 Aluminum Feed-Thru Device Body 1/2" Hub Size 7.75" x 3.5" x 2-1/4"
Killark SWB-4 Aluminum Feed-Thru Device Body 1/2" Hub Size 7.75" x 3.5" x 2-1/4"
- MPN: SWB-4
- UPC: 783936630045
- PPN: HBL-SWB-4
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$162.68/ EA
Description
SWB Series - Aluminum Feed-Thru Single-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 1/2 Inch - 5-7/8 Inch X 3 Inch X 2-1/4 Inch
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Accepts both miniature and standard size push buttons.
- Internal ground screw.
- Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ½” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.
Specifications
Specifications
- Mounting
- Wall
- Special Features
- Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ½” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.
- Color
- Gray
- Depth
- 2-1/4
- Each - Width
- 3.500 in
- Height
- 3.5 in
- Length
- 7.75 in
- Width
- 3.5 in
- Mounting Type
- Wall
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- UL File Number
- E53360
- Series
- SWB Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936630045
Size7.75 in x 3.5 in x 3.5 in
ARRA CompliantContact Manufacturer
Country of OriginMX
Dimensions7.75 in x 3.5 in x 3.5 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size1/2"
Weight1.30 lb.
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
TypeAluminum Device Body
Description - Invoice1/2" SWB DEVBODY 5 7/8X3X2 1/4" FDTHR
Harmonization Code7616999999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging1.303
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
