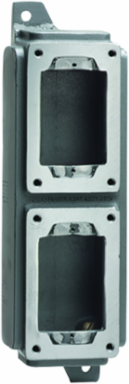

Killark SWB-17 Aluminum Double-Gang Device Body 14.5 Inch x 5.375 Inch x 4.5 Inch, Hub Size 1 Inch Max
- MPN: SWB-17
- UPC: 783936630182
- PPN: HBL-SWB-17
- UNSPSC: 39122216
CAD
$1105.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SWB Series - Aluminum Double-Gang Device Body For Use With XCS/XS/XT Cover Assemblies - Hub Size 1 Inch Max
Features
- Copper free cast aluminum alloy.
- Designed for custom drilled and tapped conduit openings on all four sides and the back.
- Ground flange joint between bolted cover and box provide required flame path.
- Accepts both miniature and standard size push buttons.
- Internal ground screw.
- Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ½” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.
Specifications
Key Specifications
- Mounting
- Wall
- Special Features
- Killark SWB SERIES CONTROL STATION BACK BOXES provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark XCS and XS Cover Assemblies. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The SWB is offered in a wide variety of configurations from ½” to 1” dead end and feed through for single double and triple gang to multi gang options with up to 15 cavities for XCS and XS Cover Assemblies.
- Country of Origin
- United States
- Depth
- 2-1/2 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- Max. 1"
- Weight
- 4.56 lb.
- Engineering Drawing 1 Display Text
- SWB-17 Engineering Drawing
- Mounting Type
- Wall
- Class Code
- A99
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- UL File Number
- E53360
- Series
- SWB Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Size14.5 in x 5.375 in x 4.5 in
ARRA CompliantContact Manufacturer
ColorGray
Dimensions14.5 in x 5.375 in x 4.5 in
Height4.5 in
Length14.5 in
Width5.375 in
ApplicationHazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
TypeAluminum Device Body
Description - InvoiceSHALLOW DEVICE BODIES 1"
Harmonization Code7616995090
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeA99
Gross Weight with Packaging4.56
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936630182
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
