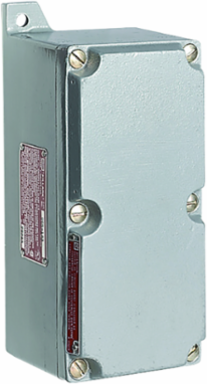

Killark SWBC-14 Aluminum Operator Body Blank Box 6.88 Inch x 3.75 Inch x 5.5 Inch, CSA Listed
Killark SWBC-14 Aluminum Operator Body Blank Box 6.88 Inch x 3.75 Inch x 5.5 Inch, CSA Listed
- MPN: SWBC-14
- UPC: 783936630540
- PPN: HBL-SWBC-14
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$510.91/ EA
Description
SWBC Series - Aluminum Operator Body - Blank Box And Cover Without Operator Holes - Style 3 - SWB-14 Box
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Accepts both miniature and standard size push buttons.
- Internal ground screw.
- Killark GCS and SWBC SERIES CONTROL STATIONS provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark “GO” Short Style operators when installed in the covers and “GO” Long Style operators when installed in the back wall to allow for thickness of a panel for panel mounting. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The GCS and SWBC can be drilled and tapped to order or in the field by the customer from ½” to 1 1/2” for dead end and feed through entries.
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 6.88 in x 3.75 in x 5.5 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.88 in
- Color
- Gray
- Size
- 6.88 in x 3.75 in x 5.5 in
- Type
- Aluminum Operator Body
- Width
- 3.75 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- BLNK BOX/COV NO OPERATOR HOLES
- Harmonization Code
- 7616995190
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 3.7
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936630540
Depth3-3/8
Each - Width3.750 in
Height5.5 in
ApplicationFor use with G Series custom control panel operators.
MountingWall
Special FeaturesKillark GCS and SWBC SERIES CONTROL STATIONS provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark “GO” Short Style operators when installed in the covers and “GO” Long Style operators when installed in the back wall to allow for thickness of a panel for panel mounting. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The GCS and SWBC can be drilled and tapped to order or in the field by the customer from ½” to 1 1/2” for dead end and feed through entries.
Weight3.70 lb.
Mounting TypeWall
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
