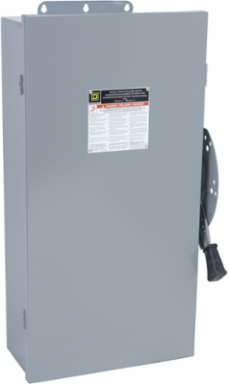

Square D DTU463AWK Double Throw Safety Switch 100A 600V 4 Pole NEMA 12
- MPN: DTU463AWK
- UPC: 785901307792
- PPN: SCH-DTU463AWK
- UNSPSC: 39122218
CAD
$2696.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 100A for 600VAC and 600VDC. This heavy duty switch has a 4 wire configuration with 4 poles. The enclosure is surface mounted and is a Type 12. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Features
- Reliable performance
- Long term durability
- Enclosed operating mechanism
- Meets or exceeds NEMA KS1
- CSA and UL certifed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Depth | 7.12 in |
| Weight | 20412 g |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 600 V AC, 600 V DC |
|---|
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R, J or T |
| Carbon Footprint Of The Distribution Phase A4 | 39.25929525230399, 39 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0889267374307617, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 193 kg CO2 eq., 192.67910643273322 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper |
| Disconnector Device Type | non-fusible disconnect switch |
| Number Of Poles | 4 |
| Product Or Component Type | Double Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Database Version | 2024-01 |
| Height Nominal | 30.26 in |
| Certificate Agency | UL Listed |
| Customs Code | 8536509045 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 90 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 35-35 lbf.in 2.06-5.26 mm² (14 AWG...1/0 AWG), 40-40 lbf.in 8.37-8.37 mm² (8 AWG)45-45 lbf.in 13.30-53.48 mm² (8 AWG), 50-50 lbf.in 26.67-53.48 mm² (6 AWG...4 AWG) |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 48 kg CO2 eq., 48.33915658216426 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 101 kg CO2 eq., 100.84867438074967 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | none |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 381 kg CO2 eq. |
| Data Source | extrapolated product |
| Width Nominal | 16.75 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 10 kA H or K200 kA R, J or T |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 430.992 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 381.2151593853819 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2503028EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503028EN |
| Nema Degree Of Protection | NEMA 12 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | Double Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
