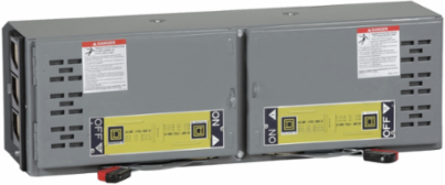

Square D QMJ364T Switch unit, QMJ fusible panelboards, 200A to 200A, 600VAC, 7.5 inch, 3 pole, 150hp @ 600VAC max
Square D QMJ364T Switch unit, QMJ fusible panelboards, 200A to 200A, 600VAC, 7.5 inch, 3 pole, 150hp @ 600VAC max
- MPN: QMJ364T
- UPC: 785901209027
- PPN: SCH-QMJ364T
- UNSPSC: 39121111
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Square D brand QMJ fusible power distribution panelboards are for use on AC or DC systems. They are UL Listed under File E6294 and File E33139 and marked cULus.
Features
- This fusible twin switch unit accepts Class J fuses for QMB fusible panelboards
- Mechanical (aluminum) lugs standard; option for copper mechanical lugs or crimp lugs (AL or CU)
- Provides overcurrent and short circuit protection, a disconnect between load and source, and a circuit open/close device
- The unit complies with UL and CSA standards verified by third party UL
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL
StandardsNEMA KS1
Complementary Attributes
- Line Rated Current
- 200 A - 200 A 600 V AC
Important Information Attributes
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Fuse Type
- R
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Ue Rated Operational Voltage2
- 600 V AC
- Stocking Flag
- N
- Global Commercial Status
- End of commercialisation
Local Publishable Date2025-07-08
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Package Weight Lbs20.434 kg
Product Or Component Typefuse-switch disconnector
Sustainable PackagingNo
Medium DescSwitch unit, QMJ fusible panelboards, 200A to 200A, 600VAC, 7.5 inch, 3 pole, 150hp @ 600VAC max
Product Kit IdentifierN
Ue Rated Operational Voltage5600 V AC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- fuse-switch disconnector
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
