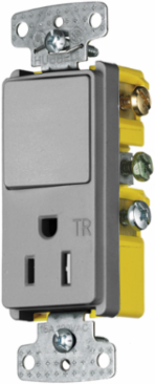

Bryant RCD108GYTR Decorative Combination Device with Tamper Resistant Receptacle, 15A 120V AC
- MPN: RCD108GYTR
- UPC: 883778302350
- PPN: HBL-RCD108GYTR
- UNSPSC: 39122226
CAD
$24.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Tamper Resistant Single Receptacle, 15A 120V AC, Side Wired
Features
- Smooth, quiet rocker
- Low profile, less than 1 inch deep
- Self-grounding feature is standard
- Tamper Resistant Receptacle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 3.000 in
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Actuator
- Rocker
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 1) Single Pole
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- CSA Certified;UL Listed E3896
- Wattage
- 1875
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Display Size
- Standard Size
- Description - Invoice
- COMBO DEC, 15A SP&15A125V RCPT TR, GY
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 15 A
- BOX SIZE
- 2.600x9.100x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778302350
- Case Weight
- 8.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Industry Standard(s)CSA Certified;UL Listed E3896
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesTamper Resistant Receptacle
Voltage Rating125 VAC
Voltage Rating Description125 VAC
ConnectivitySide Wired
Number Of Poles1) Single Pole
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareMounting Screws
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.65 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
