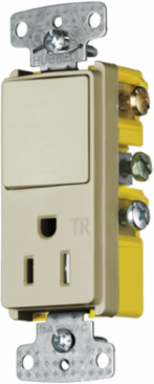

Bryant RCD108ITR Decorator Series Combination Device, 15A 120V AC, Single Pole Rocker & Tamper Resistant Receptacle
Bryant RCD108ITR Decorator Series Combination Device, 15A 120V AC, Single Pole Rocker & Tamper Resistant Receptacle
- MPN: RCD108ITR
- UPC: 883778302367
- PPN: HBL-RCD108ITR
- UNSPSC: 39122226
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$24.43/ EA
Description
Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Single Pole Rocker, 1) Tamper Resistant Single Receptacle, 15A 120V AC, Side Wired
Features
- Smooth, quiet rocker
- Low profile, less than 1 inch deep
- Self-grounding feature is standard
- Tamper Resistant Receptacle
Specifications
Specifications
- Country of Origin
- China
- Width
- 1.600 in
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Actuator
- Rocker
- Application
- Residential
- Contact Rating
- 15A
- Number of Poles
- 1) Single Pole
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Standard
- CSA Certified;UL Listed E3896
- Wattage
- 1875
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Connectivity
- Side Wired
- Number Of Poles
- 1) Single Pole
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Mounting Screws
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.65 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 7.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Industry Standard(s)CSA Certified;UL Listed E3896
ActionSnap Switch
Amperage Rating15 A
Contact ConfigurationTwo Position
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles30,000 Minimum
Special FeaturesTamper Resistant Receptacle
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Conduit ConnectionNone
Display SizeStandard Size
Description - InvoiceCOMBO DEC, 15A SP&15A125V RCPT TR, IV
Harmonization Code8536698000
MSDS FlagNo
Current Rating15 A
BOX SIZE2.500x9.100x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778302367
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
