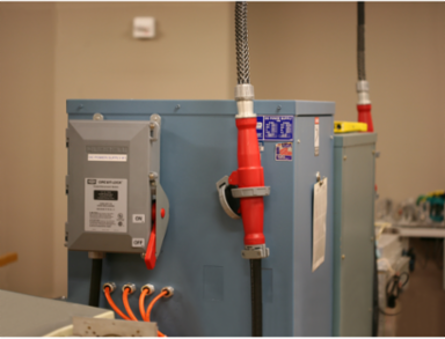

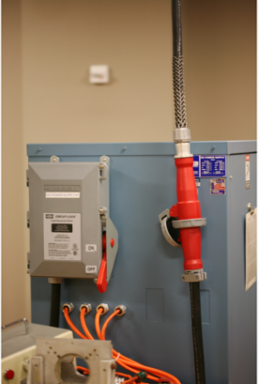

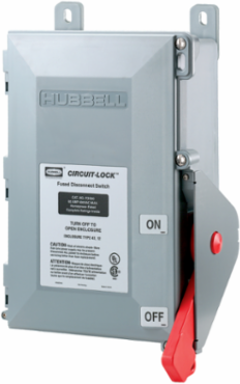

Hubbell Wiring Device-Kellems FDS60 Heavy Duty 60 Amp Fused Disconnect, 15.36 Inch x 11.46 Inch x 8.43 Inch, IP66
- MPN: FDS60
- UPC: 783585519609
- PPN: HBL-FDS60
- UNSPSC: 39122205
CAD
$2799.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Industrial Grade, 60 Amp 600V AC, Fused Disconnects, Heavy Duty, Terminal Screws
Features
- Safety interlocked fuse access door
- Removable door for ease of wiring and installation
- Lockable high visibility red handle for OSHA Lockout/Tagout
- Equipped with a robust 60 amp fused disconnect, this switch ensures safe and reliable power management in industrial settings.
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- FDS60 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Country of Origin
- Italy
- Dimensions
- 15.36 in x 11.46 in x 8.43 in
- Horsepower - Maximum
- 40
- Ingress Protection
- IP66
- Performance
- Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Moisture Resistance - Indoor and Outdoor – Type 4X, Indoor – Type 12;Environmental - Operating Temperature - Max. continuous 75°C, Min. Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Special Features
- Equipped with a robust 60 amp fused disconnect, this switch ensures safe and reliable power management in industrial settings.
- Type
- Disconnect Switches
- Width
- 11.46 in
- Style
- Heavy Duty
- Description - Invoice
- FUSED DISCO SW, 3P, 60A
- Harmonization Code
- 8537109999
- MSDS Flag
- No
- Current Rating
- 60 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 16.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585519608
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextEducation Application Guide
Current / Amperage Rating60 A
Height8.43 in
Industry Standard(s)UL Listed
Length15.36 in
Amperage Rating60 A
Size15.36 in x 11.46 in x 8.43 in
StandardUL Listed
Weight16.85 lb.
Dielectric StrengthWithstands 3000V AC minimum
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A260
SeriesFused
BOX SIZE9.200x20.100x12.400 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585519609
Case Weight16.200 lb.
Lowest Level UOMEach
Pallet Height46.000 in
Pallet Weight567.000 lb.
NAICS Code3353146111
Certifications
- EU RoHS Indicator
- No
