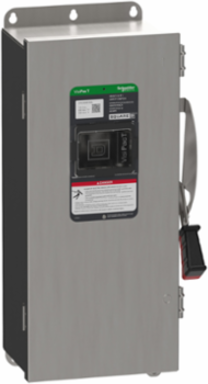

Square D VH363DSGL Heavy-Duty Safety Switch 3 Pole, 600V, 100A, NEMA 4X
- MPN: VH363DSGL
- PPN: SCH-VH363DSGL
CAD
$3693.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance in various industrial applications, the VH363DSGL Heavy-Duty Safety Switch from Schneider Electric offers reliable operation with its three-pole design, capable of handling up to 600 volts and 100 amps. Designed with NEMA 4X ratings, this switch provides exceptional protection against dust and water, making it ideal for environments where exposure to harsh elements is a concern. Its solid construction ensures durability, while the safety features integrated into its design make it a vital component for ensuring secure electrical control and protection in any heavy-duty setting.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 100 A
- Short-Circuit Current
- 10 kA for H, K, J or R without fuse rejection clips; 200 kA for R with fuse rejection clips; 200 kA for J
- Motor Power
- 25 Hp at 480 V AC; 60 Hp at 480 V AC; 30 Hp at 600 V AC; 100 Hp at 600 V AC; 50 Hp at 600 V DC
- Width
- 9.336 in
- Depth
- 7.2 in
- Tightening Torque
- 35 to 50 lbf.in depending on wire size
- Wiring Configuration
- 3-wire
- Electrical Connection
- Lugs
- Device Application
- Heavy application
- Material
- Stainless steel 304 (NEMA 4X)
- Service Entrance
- Suitable for USA and Mexico
- RoHS Compliance
- EU RoHS Compliant; China RoHS
- Environmental Disclosure
- ENVPEP2303036EN
- Country of Origin
- US
Voltage600 V AC/DC
Fuse TypeH or K, R or J
Number of Poles3
Height20.73 in
Net Weight10.43 kg
Mounting TypeSurface
Wire SizeAWG 12...AWG 1/0 aluminum; AWG 14...AWG 1/0 copper
Duty RatingHeavy duty
Disconnect TypeFusible disconnect
Grounding KitFactory installation
CertificationsUL Listed file E2875
REACH ComplianceFree of SVHC above threshold
Series NameHeavy duty
