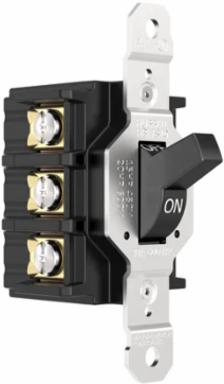

Hubbell Wiring Device-Kellems HBL7810 Circuit-Lock® 30A 3-Pole Manual Toggle Controller, 600V AC, 4.250 Inch Width
Hubbell Wiring Device-Kellems HBL7810 Circuit-Lock® 30A 3-Pole Manual Toggle Controller, 600V AC, 4.250 Inch Width
- MPN: HBL7810
- UPC: 783585680507
- PPN: HBL-HBL7810
- UNSPSC: 39121521
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$127.34/ EA
Description
Circuit-Lock® Manual Toggle Controller/Motor Disconnect Switch, 3-pole 30A 600V AC, Back and Side Wired
Features
- Thermoset body provides high resistance to electrical arc tracking
- Strong ON/OFF action with quick-make, slow break operation
- Optional Side Finger Guards for close wall applications and finger safe environments
- Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
- Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
- Standard Product
Specifications
- Amperage
- 30 A
- Number of Poles
- 3 Pole
- Dielectric Voltage
- 2200 V AC minimum for 1 minute
- Operating Temperature Range
- -40°C to 75°C
- Electrical Life
- 6,000 cycles
- Connectivity
- Back and Side Wired
- Housing Material
- Thermoset
- Contacts Material
- Silver Alloy
- Compliance
- CSA-C22.2 No.14; UL 508; RoHS Compliant
Voltage600 VAC
Wattage18000 W
Short Circuit Current Rating60 A max with J fuses
Mechanical Life10,000 cycles minimum
Width4.25 in
MaterialStainless Steel
Terminal Screw MaterialBrass
Flammability RatingUL94HB/VO
Country of OriginCN
