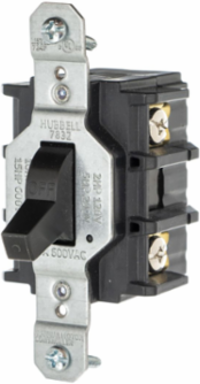

Hubbell Wiring Device-Kellems HBL7832 Circuit-Lock 30A Manual Toggle Controller, 600V AC, 2-Pole, Stainless Steel
Hubbell Wiring Device-Kellems HBL7832 Circuit-Lock 30A Manual Toggle Controller, 600V AC, 2-Pole, Stainless Steel
- MPN: HBL7832
- UPC: 783585680521
- PPN: HBL-HBL7832
- UNSPSC: 39121521
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$101.68/ EA
Description
Circuit-Lock® Manual Toggle Controller/Motor Disconnect Switch, 2-pole 30A 600V AC, Back and Side Wired
Features
- Thermoset body provides high resistance to electrical arc tracking
- Strong ON/OFF action with quick-make, slow break operation
- Optional Side Finger Guards for close wall applications and finger safe environments
- Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
- Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
- Standard Product
Specifications
- Amperage
- 30 A
- Short Circuit Current Rating
- 60 A
- Load Capacity
- Inductive
- Wattage
- 18000 W
- Operating Cycles
- 10,000 Cycles Minimum
- Weight
- 0.45 lb.
- Housing Material
- Thermoset
- Contacts Material
- Silver Alloy
- Wire Type
- Solid and stranded copper
- EU RoHS Indicator
- Yes
- Color
- Black
Voltage600 VAC
Dielectric Voltage2200 V AC
Number of Poles2 Pole
Operating Temperature Range-40°C to 75°C
Width4.250 in
MaterialStainless Steel
Terminal Screw MaterialBrass
Terminal Accommodation#10 AWG Max
Flammability RatingUL 94HB/VO
Country of OriginCN
Downloads
Video
