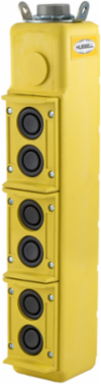

Hubbell Wiring Device-Kellems PBS62 Industrial Grade Pendant Push Button Station 6 Button Two Speed 250V AC Max
Hubbell Wiring Device-Kellems PBS62 Industrial Grade Pendant Push Button Station 6 Button Two Speed 250V AC Max
- MPN: PBS62
- UPC: 783585610627
- PPN: HBL-PBS62
- UNSPSC: 39121561
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Switches and Lighting Controls, Industrial Grade, Pendant Controls, Push Button Station, 6) Buttons- Two Speed, Pilot Duty, 250V AC Max, Terminal Screws, Yellow
Features
- 6 button
- Two speed
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Ingress Protection
- IP44
- Performance
- Environmental - Operating Temperatures - Max Continuous- 75 ° C, Minimum -40° w/o Impact
- Amperage Rating
- 6 A
- Contact Rating
- Pilot Duty Only
- Environmental Conditions
- Indoor and Outdoor
- Phase
- Single Phase
- Standard
- CSA Certified
- Weight
- 7.8 lb.
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Terminal Screws
- Enclosure Type
- NEMA 3R
- Style
- Six Button
- Description - Invoice
- BUTTON STATION, 6 BUTTON 2 SPEED
- Harmonization Code
- 8536509035
- MSDS Flag
- No
- Material - Mounting Hardware
- Cable Mounted
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 78.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 8.850 lb.
- Lowest Level UOM
- Each
Industry Standard(s)CSA Certified
Length3.25 in
ActuatorPush Buttons
Contact ConfigurationMomentary
EnclosureNEMA 3R
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Special FeaturesStandard Product
TypeTwo Speed
Width4.38 in
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeFull Sized
Nema RatingNEMA 3R
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA16A240
SeriesHeavy Duty
BOX SIZE5.300x18.300x14.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585610627
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
