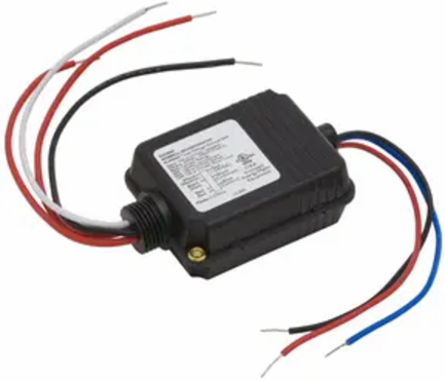

Hubbell Wiring Device-Kellems CU300A H-Moss Control Unit, 120/277V AC, Plenum Rated, 3.69 x 2.33 x 1.36 Inch
- MPN: CU300A
- UPC: 783585181004
- PPN: HBL-CU300A
- UNSPSC: 39122236
CAD
$108.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Switches and Lighting Controls, Occupancy Sensors, H-Moss Control Unit, 120/277V AC 60HZ, For use with Ceiling and Wall Mounted Sensors
Features
- Automatic ON operation
- Automatic Voltage Detection eliminates the need for specialized wiring
- Zero Arc Point Switching Minimizes relay contact
- Easily mounts inside or outside a junction box or inside a fluorescent fixture ballast cavity.
- Plenum rated
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Height
- 1.36 in
- Industry Standard(s)
- ASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
- Performance
- Electrical - AT Sensor/AAR Capacity - 1 to 4 combined;Electrical - Load Capacity - Incandescent - 0 to 1800 watts, 120V Ballast- 0 to 2400 watts, 277V Ballast- 0 to 5540 watts;Electrical - Power Output - 24V DC, 150mA;Electrical - Power Supply - 120-277V AC, 50/60Hz;Environmental - Operating Temperature - 32°F to 104°F (0°C to 40°C), 0% to 90% non condensing relative humidity;Environmental - Storage Temperature - -20°F to 150°F (-29°C to 65°C), 0% to 90% non condensing relative humidity
- Application
- For Use with 24V DC Sensors
- Control Output
- Relay Contacts
- Load
- Incandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts277V Ballast- 0 to 5540 Watts
- Operating Temperature
- 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C)
- Special Features
- Standard Product
- Type
- Accessories
- Voltage Rating Description
- 24V DC
- Engineering Drawing 1 Display Text
- CU300A AutoCAD Drawing
- General Literature Asset 2 Display Text
- Load Control Application Guide
- Frequency Rating
- 50/60 Hz
- Style
- Control Units
- Description - Invoice
- 120/277V HMOSS CONTROL UNIT
- Harmonization Code
- 8536507000
- MSDS Flag
- No
- Sub Class Code
- A48A450
- Material
- Thermoplastic
- Supply Voltage
- 120/277V AC V
- BOX SIZE
- 9.600x17.100x13.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585181004
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet Height
- 48.000 in
- Pallet Weight
- 710.000 lb.
- NAICS Code
- 3351294124
Dimensions3.69 in x 2.33 in x 1.36 in
Humidity0% to 95% non-condensing relative humidity
Length3.69 in
Storage Temperature Range-20°F to 150°F (-29°C to 65°C)
ColorBlack
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Operating Cycles6,000 Cycles Minimum
Size3.69 in x 2.33 in x 1.36 in
StandardASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3)
Voltage Rating24 VDC
Width2.33 in
General Literature Asset 1 Display TextHealthcare Product Solutions
General Literature Asset 3 Display TextEducation Application Guide
Load CapacityIncandescent- 0 to 1800 Watts120V Ballast- 0 to 2400 Watts277V Ballast- 0 to 5540 Watts
Class CodeA48
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberCU120;CU120A;CU230;CU230A;CU277;CU277A
Material - Mounting HardwareScrew Mounting
SeriesDual;Ultrasonic;Passive Infrared
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight13.449 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
