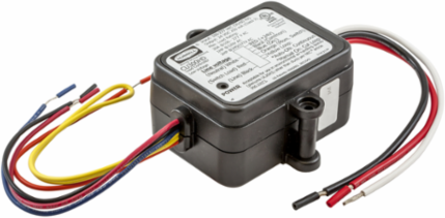

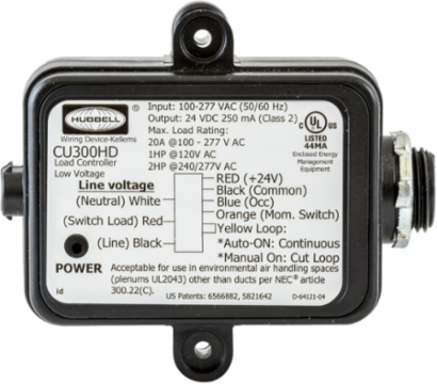

Hubbell Wiring Device-Kellems CU300HD Heavy Duty Occupancy Sensor Control Unit, 120/277V AC, 20A, 4 Inch x 3.4 Inch x 1.73 Inch
- MPN: CU300HD
- UPC: 783585256207
- PPN: HBL-CU300HD
- UNSPSC: 39122236
CAD
$235.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Control, Occupancy Sensor, Control Unit, 120/277V AC, Heavy Duty Relay, Latching
Features
- Robust latching relay provides unsurpassed and unrestricted performance
- Controlled by Hubbell occupancy sensors
- Auto or manual "ON" operation
- Powers up to six low voltage sensors
- Plenum rated
Specifications
Additional
- Voltage
- 120-277V AC
- Motor Load Capacity
- 1HP @ 120V, 2HP @ 240/277V
- Frequency Rating
- 50/60 Hz
- Operating Temperature Range
- 32°F to 104°F (0°C to 40°C)
- Width
- 3.4 in
- Size
- 4 in x 3.4 in x 1.73 in
- Certifications
- UL/cUL 916 Listed; UL 2043 Plenum Rated; ASHRAE 90.1 Compliant; CEC Title 24 Compliant
- Country of Origin
- CN
Amperage20A
Power Output24V DC 250mA
Humidity Range0% to 95% non-condensing relative humidity
Length4 in
Height1.73 in
MaterialThermoplastic, flame retardant UL 94-5VA thermoplastic
ColorBlack
