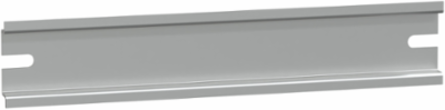

Schneider Electric NSYAMRD20357SB Symmetrical Mounting Rail 7.5mm x 35mm x 200mm, Zinc Coated, Set of 10
Schneider Electric NSYAMRD20357SB Symmetrical Mounting Rail 7.5mm x 35mm x 200mm, Zinc Coated, Set of 10
- MPN: NSYAMRD20357SB
- PPN: SCH-NSYAMRD20357SB
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3.37/ EA
Description
Spacial SBM symmetrical mounting rail for enclosure. 34 x 7,5 x 200 mm. DIN type of rail, with Self-tapping screw for mounting support. 1 rail composition. Comes in set of 10. Steel construction, Zinc coated surface finish.
Features
- Easy installation mounting by self-tapping screws
- Robust made of Galvanized steel
- Delivered with 5x 5mm self taping screws
- Suitable for SBM and SBX
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Composition
- 1 rail
- Fixing Mode
- by screw Ø5 mm self-tapping screws - rear of enclosure
- Mounting Support
- self-tapping screw
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- mounting accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP1304014EN
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Materialsteel
Package Weight Lbs62.000 g
Product Or Component Typerail
RangePanelSeT
Surface Finishzinc coated
Thickness1 mm
Medium DescSymmetrical mounting rail H35D7.5mm - L 200mm for PanelSeT SBM
Product Kit IdentifierN
Type Of Railsymmetrical DIN
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1304014EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1304014EN
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 6.46 in
Depth7.5 mm
