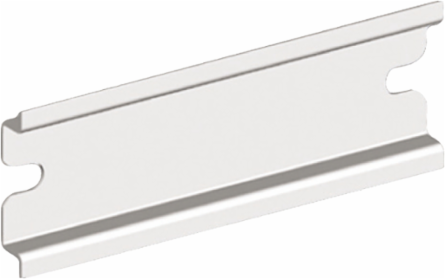

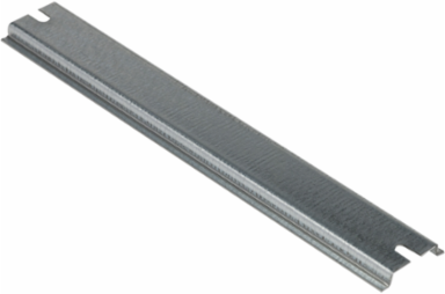

Schneider Electric NSYAMRD24357TB Symmetrical DIN Rail 214 mm Length, 35 mm Height, Zinc-Coated Steel
Schneider Electric NSYAMRD24357TB Symmetrical DIN Rail 214 mm Length, 35 mm Height, Zinc-Coated Steel
- MPN: NSYAMRD24357TB
- PPN: SCH-NSYAMRD24357TB
- UNSPSC: 39121708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$7.94/ EA
Description

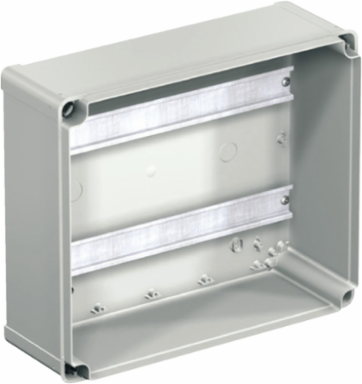

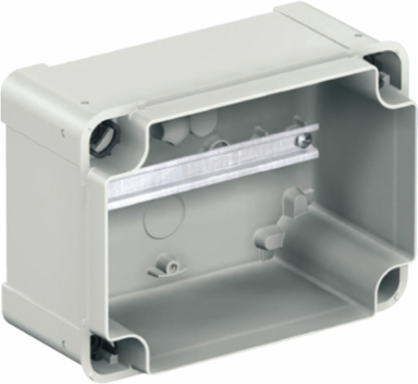

Engineered for versatility and compatibility, this symmetrical DIN rail from Schneider Electric is an essential installation accessory designed for use with Thalassa TBS and TBP enclosures. Measuring 214 mm in length, 35 mm in height, and 7.5 mm in width, it is crafted from durable zinc-coated steel, ensuring longevity and resistance to wear. With a thickness of 1 mm and a lightweight design of just 0.072 kg, this rail is ideal for a variety of applications, providing reliable support for your electrical components. Packaged in sets of ten, it simplifies your installation process while adhering to environmental standards, making it a practical choice for professionals in the field.
Features
- A 15 x 5 mm rail is provided for the compact terminal blocks.
- Installation: Fixing of the rails with Ø 4 mm self-tapping screws
- Not included Pozidrive and slotted head, refNSYAMFSTB
- Widle used to mount circuit breakers
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Local Publishable Date
- 2025-12-11
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Composition
- 1 rail
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 10
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category2
- installation accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP2202003EN
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Package Weight Lbs72.000 g
Product Or Component Typerail
RangePanelSeT
Surface Finishzinc coated
Thickness1 mm
Medium DescSymmetrical DIN rail, H35xD7.5 mm Length: 214 mm, for boxes of 225 mm (Internal)
Product Kit IdentifierN
Type Of Railsymmetrical DIN
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2202003EN
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Length
- 8.86 in
Country of OriginUnited States
