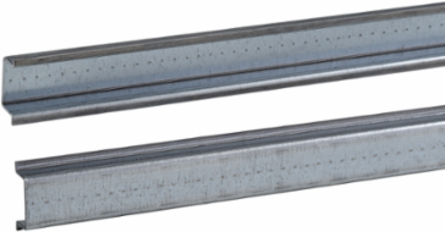

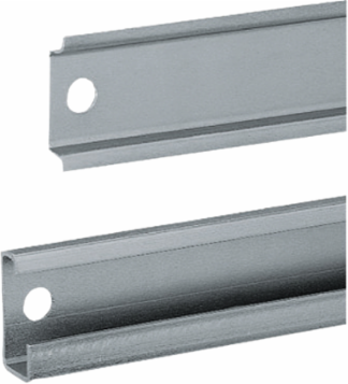

Schneider Electric NSYSDR30B Symmetric Mounting Rail 35mm x 7.5mm L300mm, Set of 20
Schneider Electric NSYSDR30B Symmetric Mounting Rail 35mm x 7.5mm L300mm, Set of 20
- MPN: NSYSDR30B
- PPN: SCH-NSYSDR30B
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$23.37/ EA
Description
Designed for versatility and efficiency, this symmetric mounting rail from Schneider Electric is an essential component for any multi-purpose application. Constructed from durable zinc-coated steel, the rail measures 35mm in width and 7.5mm in height, providing a robust structure that supports continuous adjustment with a pitch of 25mm. Supplied in a set of 20, this mounting accessory is compatible with various ranges, including the PanelSeT and Thalassa series, making it an ideal choice for panel builders and installation professionals looking for reliable and adaptable mounting solutions. With an 18-month warranty, this product promises quality and durability for your mounting needs.
Features
- 2 types: Type A: 35 x 15 mm, Type B: 35 x 7.5 mm
- Material: Zinc-coated steel
- Standards: IEC 715
- Thickness: Type A: 15/10e mm, Type B: 10/10e mm
- Fixing: Fixed to mounting plates or another fixing elements, uprights not included in the supply
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rail
- Adjustment
- pitch 25 mm, continuous adjustment
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Fixing Mode
- by fixing element - structure of enclosure
- Package Weight Lbs
- 106.000 g
- Product Or Component Type
- rail
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Thickness
- 1 mm
- Medium Desc
- One symmetric mounting rail 35x7.5 L300mm type B - Wall mounting - Supply: 20
- Product Kit Identifier
- N
- Type Of Rail
- symmetrical DIN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Materialzinc coated steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 20
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1001004EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 0.3 in
- Length
- 11.81 in
Width1.38 in
