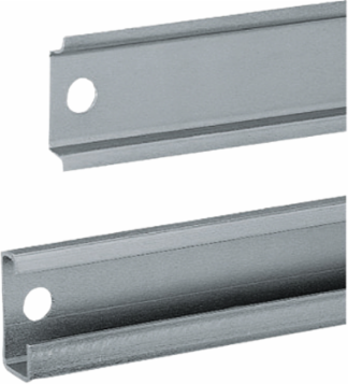

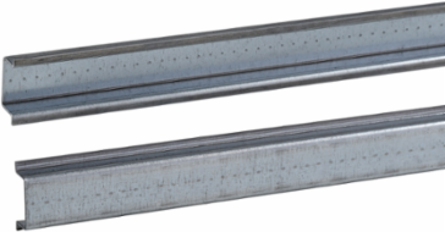

Schneider Electric NSYSDR40B Symmetrical Mounting Rail 35mm x 7.5mm x 400mm, Set of 20
Schneider Electric NSYSDR40B Symmetrical Mounting Rail 35mm x 7.5mm x 400mm, Set of 20
- MPN: NSYSDR40B
- PPN: SCH-NSYSDR40B
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$24.42/ EA
Description
Designed for versatile applications, this symmetrical mounting rail is an essential component for any panel installation. Made from durable zinc-coated steel, it ensures longevity and resistance to corrosion, making it suitable for various environments. With nominal dimensions of 35 mm in width and 7.5 mm in height, this rail can be easily adjusted to fit your specific needs, allowing for continuous adjustment with a pitch of 25 mm. Each set includes 20 rails, providing ample supply for multiple projects, and it is compatible with a range of Schneider Electric products, ensuring seamless integration into your existing systems. With an 18-month warranty, you can trust in its quality and performance for your mounting needs.
Features
- 2 types: Type A: 35 x 15 mm, Type B: 35 x 7.5 mm
- Material: Zinc-coated steel
- Standards: IEC 715
- Thickness: Type A: 15/10e mm, Type B: 10/10e mm
- Fixing: Fixed to mounting plates or another fixing elements, uprights not included in the supply
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 rail
- Adjustment
- continuous adjustment, pitch 25 mm
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Fixing Mode
- by fixing element - structure of enclosure
- Package Weight Lbs
- 138.000 g
- Product Or Component Type
- rail
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Thickness
- 1 mm
- Medium Desc
- One symmetric mounting rail 35X7.5 L400mm type B - Wall mounting - Supply: 20
- Product Kit Identifier
- N
- Type Of Rail
- symmetrical DIN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Materialzinc coated steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 20
ReturnabilityNo
Sustainable PackagingNo
Accessory Separate Part Category2mounting accessory
Stocking FlagY
Pep CodeENVPEP1001004EN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1001004EN
General Attributes
- Product Or Component Type
- rail
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 0.3 in
- Length
- 15.75 in
Width1.38 in
