Schneider Electric

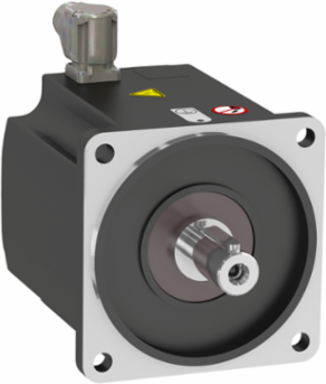

Schneider Electric BMP1401C3NA2A Synchronous Motor 480 VAC 1.35 kW 5 Poles IP65

  • MPN: BMP1401C3NA2A
  • PPN: SCH-BMP1401C3NA2A

CAD

$2784.15

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Engineered for efficiency and reliability, this synchronous motor from Schneider Electric operates at 480 VAC with a power output of 1.35 kW, making it an excellent choice for a variety of industrial applications. With its robust five-pole design and an Ingress Protection rating of IP65, it ensures superior performance even in challenging environments, safeguarding against dust and moisture. Ideal for automation and control systems, this motor provides the precision and durability required for seamless operation in general machinery drives, thus enhancing productivity and reliability in your projects.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Germany, France

Physical Attributes

Key Width8 mm
Shaft Length50 mm
Motor Flange Size140 mm

Complementary Attributes

Maximum Current Irms6.2 A ATV320 1.5 kW 400 V three phase4.5 A ATV32 1.1 kW 400 V three phase6.2 A ATV32 1.5 kW 400 V three phase, 4.5 A ATV320 1.1 kW 400 V three phase
Minimum Operating Frequency13 Hz ATV320 1.5 kW 400 V three phase, 13 Hz ATV32 1.1 kW 400 V three phase, 13 Hz ATV32 1.5 kW 400 V three phase, 13 Hz ATV320 1.1 kW 400 V three phase
Maximum Mechanical Speed3600 rpm
Maximum Operating Frequency150 Hz ATV320 1.5 kW 400 V three phase150 Hz ATV32 1.1 kW 400 V three phase, 150 Hz ATV32 1.5 kW 400 V three phase, 150 Hz ATV320 1.1 kW 400 V three phase
Maximum Axial Force Fa0.2 x Fr
Maximum Radial Force Fr1930 N 1000 rpm1530 N 2000 rpm1340 N 3000 rpm

Important Information Attributes

Nominal Operating Frequency125 Hz ATV320 1.5 kW 400 V three phase, 125 Hz ATV32 1.1 kW 400 V three phase, 125 Hz ATV32 1.5 kW 400 V three phase, 125 Hz ATV320 1.1 kW 400 V three phase
Nominal Torque7 N.m ATV320 1.5 kW 400 V three phase7 N.m ATV32 1.1 kW 400 V three phase, 7 N.m ATV32 1.5 kW 400 V three phase, 7 N.m ATV320 1.1 kW 400 V three phase
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes165-165 mm
Electrical Connectionrotatable right-angled connector
Mounting Holes Diameter11 mm
Number Of Motor Poles5
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Shaft Diameter24 mm
Stator Inductance23.33 mH for q-axis winding 40 °C19.4 mH for d-axis winding 40 °C
Sustainable PackagingNo
Type Of Coolingnatural convection
Length Total152 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501406040
Nominal Speed1500 rpm ATV320 1.5 kW 400 V three phase1500 rpm ATV32 1.1 kW 400 V three phase, 1500 rpm ATV32 1.5 kW 400 V three phase, 1500 rpm ATV320 1.1 kW 400 V three phase
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter130 mm
Device Short NameBMP
Holding Brakewithout
Mounting Supportinternational standard flange
Number Of Motor Stacks1
Phasethree phase
Product Or Component Typesynchronous motor
Rotor Inertia16.46 kg.cm²
Shaft Endkeyed
Stator Resistance2.56 Ohm 40 °C
Torque Constant3.06 N.m/A 40 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage480 V
Package Weight(Lbs)9.598 kg
Warranty (In Months)18

Environment Attributes Main

Product Compatibilityvariable speed drive ATV320 1.5 kW 380...500 V three phasevariable speed drive ATV32 1.1 kW 400 V three phase, variable speed drive ATV32 1.5 kW 400 V three phasevariable speed drive ATV320 1.1 kW 380...500 V three phase
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP65 standardIP67 with IP67 kit
Packaging Without Single Use PlasticNo
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

General Attributes

Phasethree phase
Product Or Component Typesynchronous motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power1100 W ATV320 1.5 kW 400 V three phase1100 W ATV32 1.1 kW 400 V three phase, 1100 W ATV32 1.5 kW 400 V three phase, 1100 W ATV320 1.1 kW 400 V three phase

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
Synchronous Motor 480 VAC 1.35 kW 5 Poles IP65
