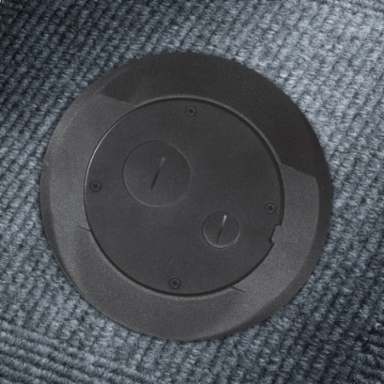

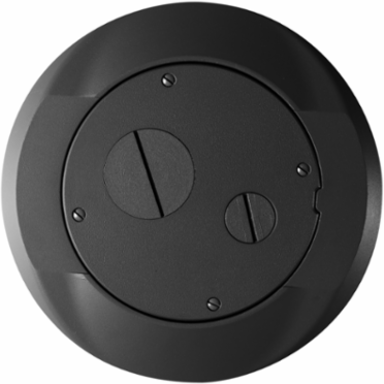

Hubbell Premise Wiring S1SPFFBL SystemOne Carpet Furniture Feed Cover/Flange 8 Inch x 8 Inch, Aluminum Construction
- MPN: S1SPFFBL
- UPC: 783585371412
- PPN: HBL-S1SPFFBL
- UNSPSC: 39121307
CAD
$246.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SystemOne Carpet Furniture Feed Cover/Flange Powder Paint Finish
Features
- Powder Coat Painted Carpet Furniture Feed Cover/Flange
- (1) ¾" Threaded Hub for Power and (1) 2" Threaded Hub for Data
- Includes (1) ¾" and (1) 2" Liquidtight Conduit Connectors
- Complies with ADA
- Cover/Flange; Cast Aluminum Construction; Durable Powder Coat Finish
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Core Hole | 4 Inch SystemOne |
| Dimensions | 8 in x 8 in x 2.41 in |
| Mounting Method | To Fitting in Floor |
| Type of Use | Carpet, Furniture Feed |
| Application | Flush SystemOne Installation |
| Height | 2.41 in |
| Number of Outlet | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Special Features | Cover/Flange; Cast Aluminum Construction; Durable Powder Coat Finish |
| Type | Sub Plate |
| Weight | 1.629 lb. |
| Finish Type | Black |
| Style | Cover Flanges |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Mounting Hardware Included |
| Material | Aluminum |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 18.550 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Pallet - GTIN - Package | 70783585371411 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application - For Use On | Carpet |
|---|---|
| Cover Shape | Round |
| Industry Standard(s) | cULus;UL514 |
| Service | Single; Multi |
| Typical Application | Carpet, Furniture Feed |
| Color | Black |
| Length | 8 in |
| Size | 8 in x 8 in x 2.41 in |
| Standard | cULus;UL514 |
| Width | 8 in |
| Cover Type | Furniture Feed |
| Number Of Outlets | (1) 3/4" & (1) 1½" Threaded Hub Multi-Service |
| Description - Invoice | SUBPLATE, FURN.FEED, SYS 1, BLACK |
| Harmonization Code | 7616995190 |
| MSDS Flag | No |
| Construction | Cast Aluminum |
| Series | Flush - S1 Series |
| BOX SIZE | 12.500x21.600x15.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585371412 |
| Case Weight | 24.398 lb. |
| Pallet Height | 37.500 in |
| Pallet Weight | 324.750 lb. |
| NAICS Code | 3359326106 |
